HK-DSP40C-RF DSP Handheld Induction Bolt Expansion Machine
Main type of DSP Air Cooled Induction Heating Machines:
Type | Output Power | Input Current | Output Frequency | Input Voltage |
---|---|---|---|---|
HK-DSP20AB-RF / HK-DSP20C-RF | 20KVA | 43A | 30KHz ~ 60KHz | 380VAC / 3 Phase |
HK-DSP30AB-RF / HK-DSP30C-RF | 30KVA | 51A | 30KHz ~ 60KHz | 380VAC / 3 Phase |
HK-DSP40AB-RF / HK-DSP40C-RF | 40KVA | 68A | 30KHz ~ 60KHz | 380VAC / 3 Phase |
HK-DSP60AB-RF / HK-DSP60C-RF | 60KVA | 101A | 30KHz ~ 60KHz | 380VAC / 3 Phase |
HK-DSP80AB-RF / HK-DSP80C-RF | 80KVA | 135A | 30KHz ~ 60KHz | 380VAC / 3 Phase |
HK-DSP100AB-RF / HK-DSP100C-RF | 100KVA | 164A | 30KHz ~ 60KHz | 380VAC / 3 Phase |
HK-DSP120AB-RF / HK-DSP120C-RF | 120KVA | 203A | 30KHz ~ 60KHz | 380VAC / 3 Phase |
HK-DSP160AB-RF / HK-DSP160C-RF | 160KVA | 270A | 30KHz ~ 60KHz | 380VAC / 3 Phase |
HK-DSP240AB-RF / HK-DSP240C-RF | 240KVA | 406A | 30KHz ~ 60KHz | 380VAC / 3 Phase |
HK-DSP320AB-RF / HK-DSP320C-RF | 320KVA | 540A | 30KHz ~ 60KHz | 380VAC / 3 Phase |
Specification of DSP Air Cooled Induction Heating Machines:
Item | Description | Remark |
---|---|---|
Output Power | 20KW ~ 320KW | |
Output Frequency | 1KHz ~ 20KHz | Medium Frequency |
30KHz ~ 60KHz | High Frequency | |
Output Power Scope | 1~100% | |
Closed-Loop Control Stability | 0.5% | |
Efficiency | ≥95% | including isolation transformer |
Power Factor | ≥0.90 | |
Over Load Ability | 1.1 times of 1 minute | |
IP level | IP20 | |
Cooling Type | air cooled for main machine and transformer | water cooled or air cooled for induction coil |
Environment Temperature | -20℃~40℃ | 0-100% load |
40℃~55℃ | output power derated | |
Environment Humidity | ≤95% | non condensing |
Altitude | ≤1500 meter | output power derated when higher than 1500m |

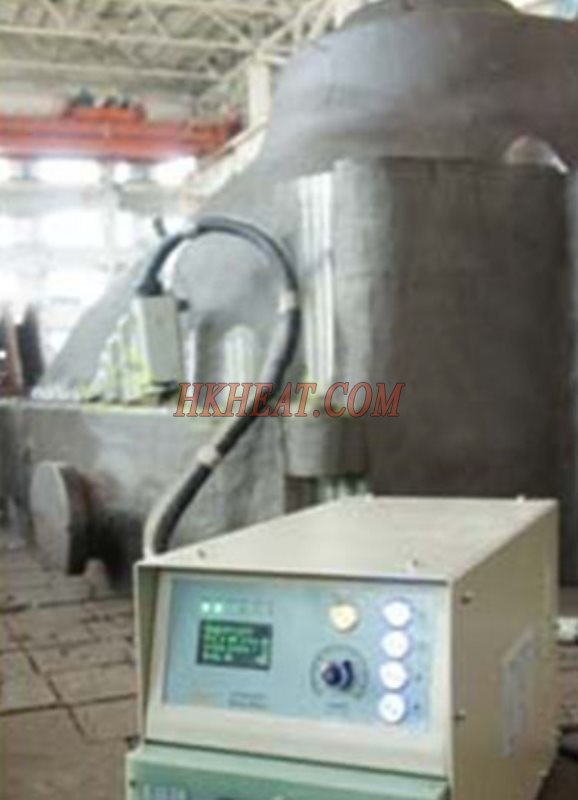

HK-DSP40C-RF induction bolt expansion for turbine

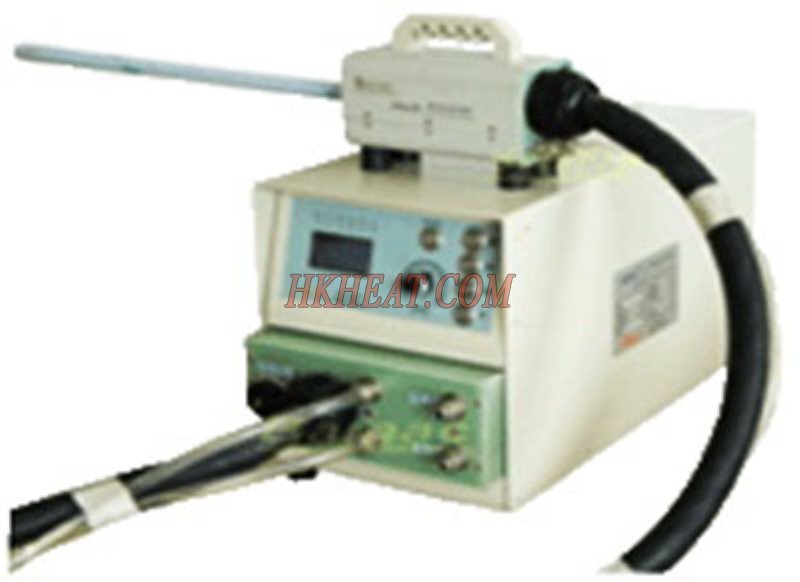

HK-DSP40C-RF induction bolt expansion machine

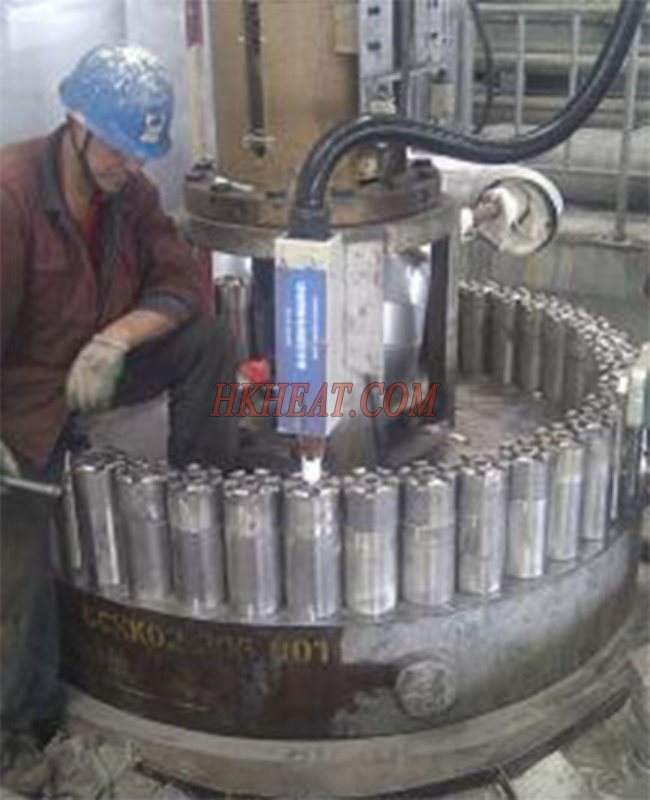

induction bolt expansion for turbine

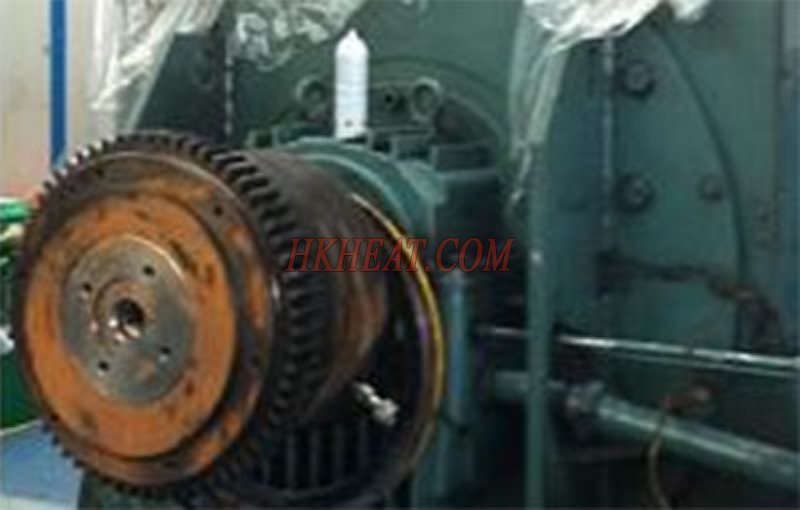

induction bolt expansion for turbines

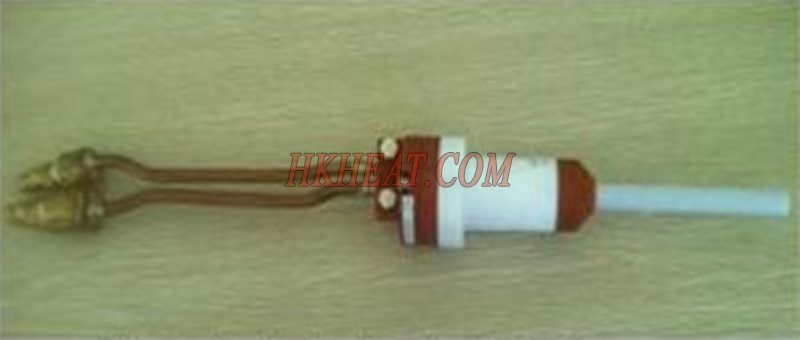

induction coil for bolt expansion for turbine
induction heating bolts for bolt expansion from turbine

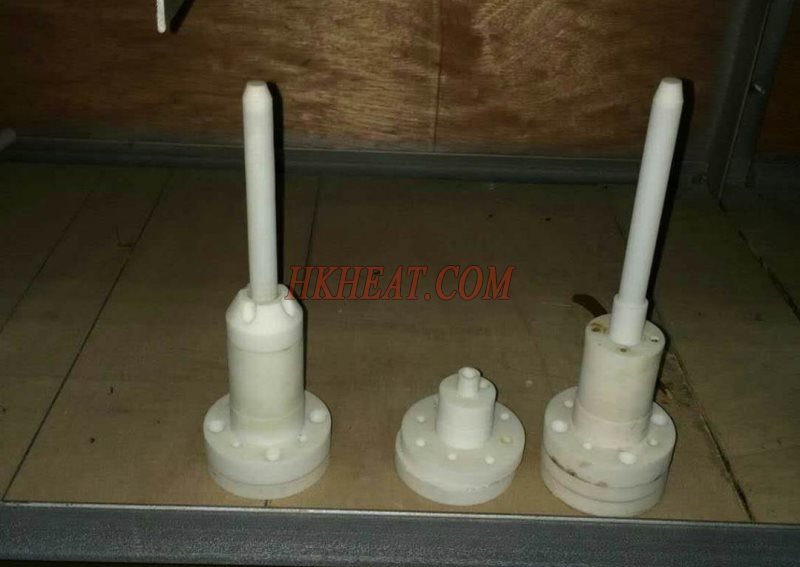

induction coil for Bolt expansion (1)

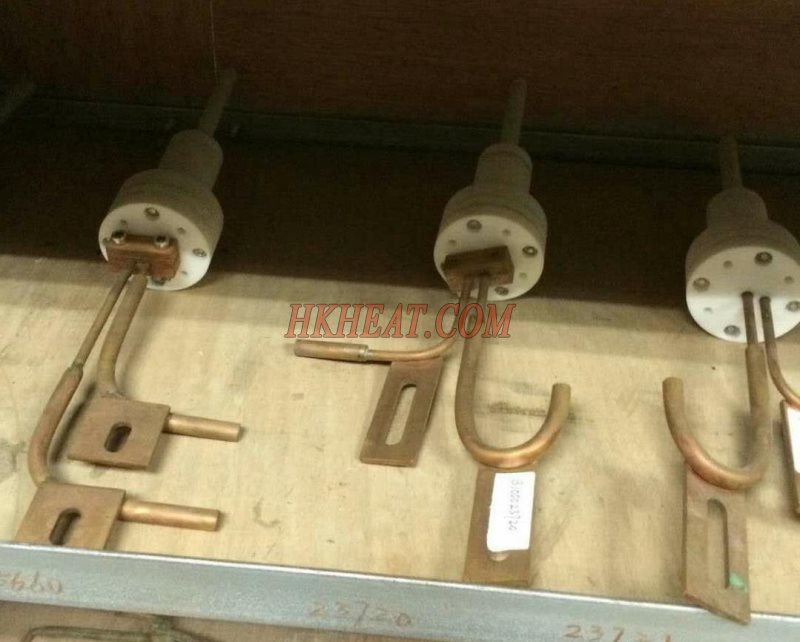

induction coil for Bolt expansion (2)
