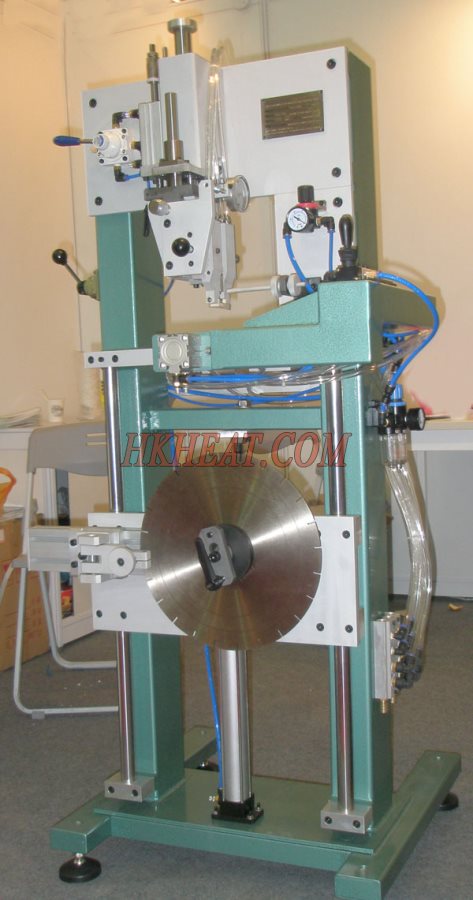

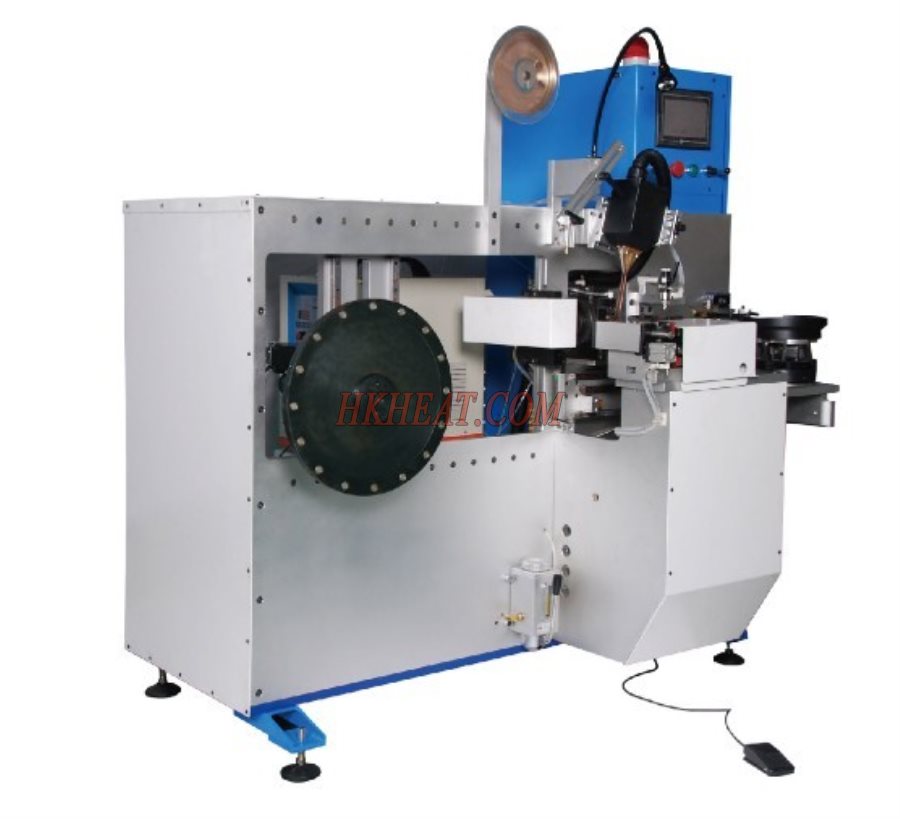

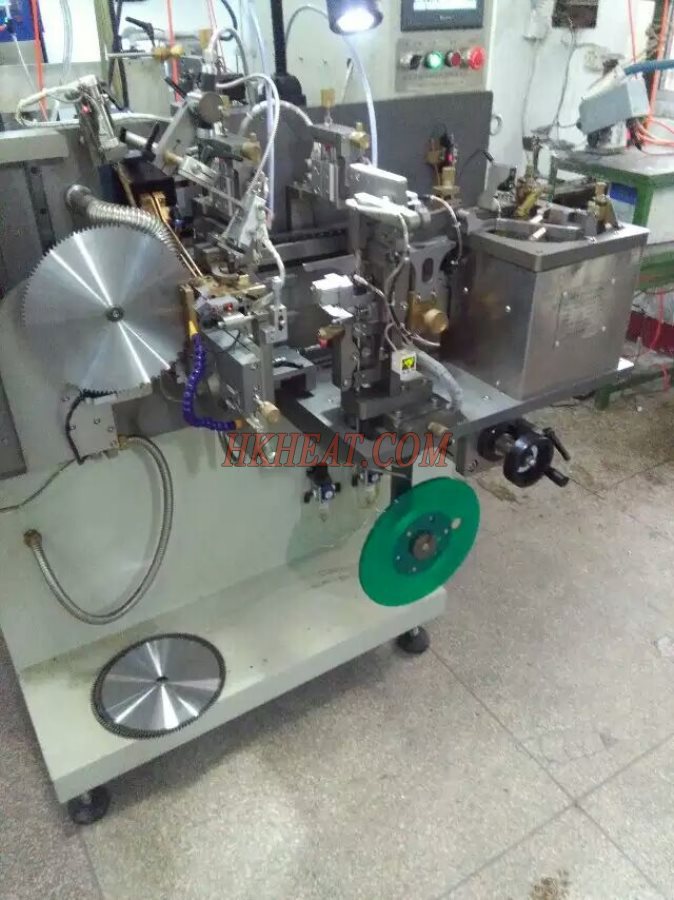

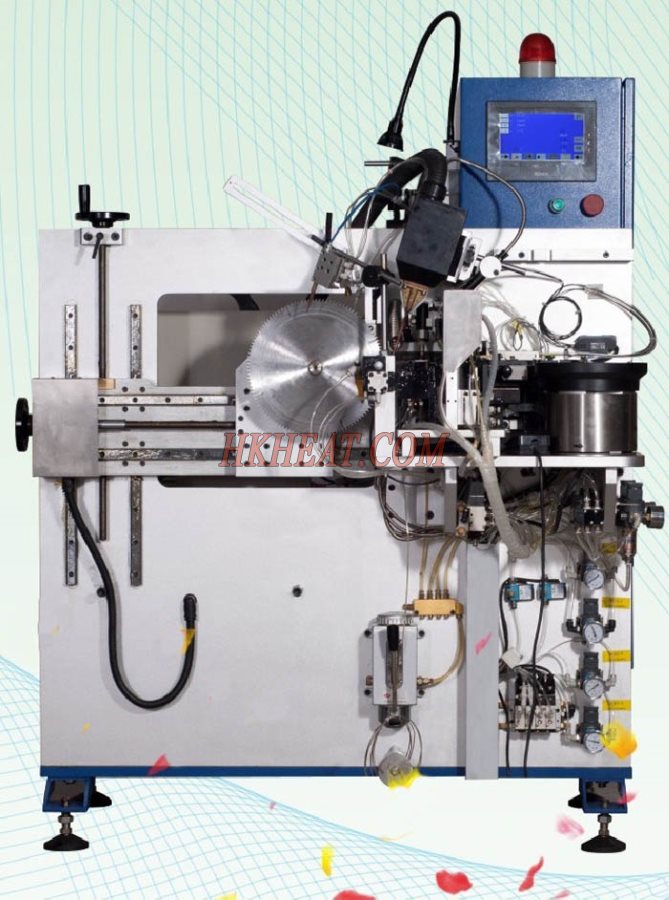

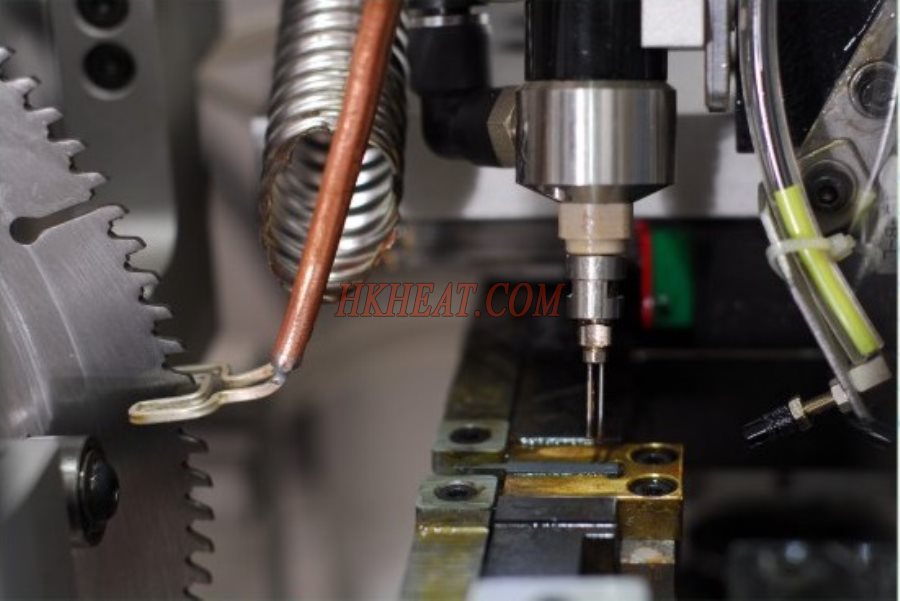

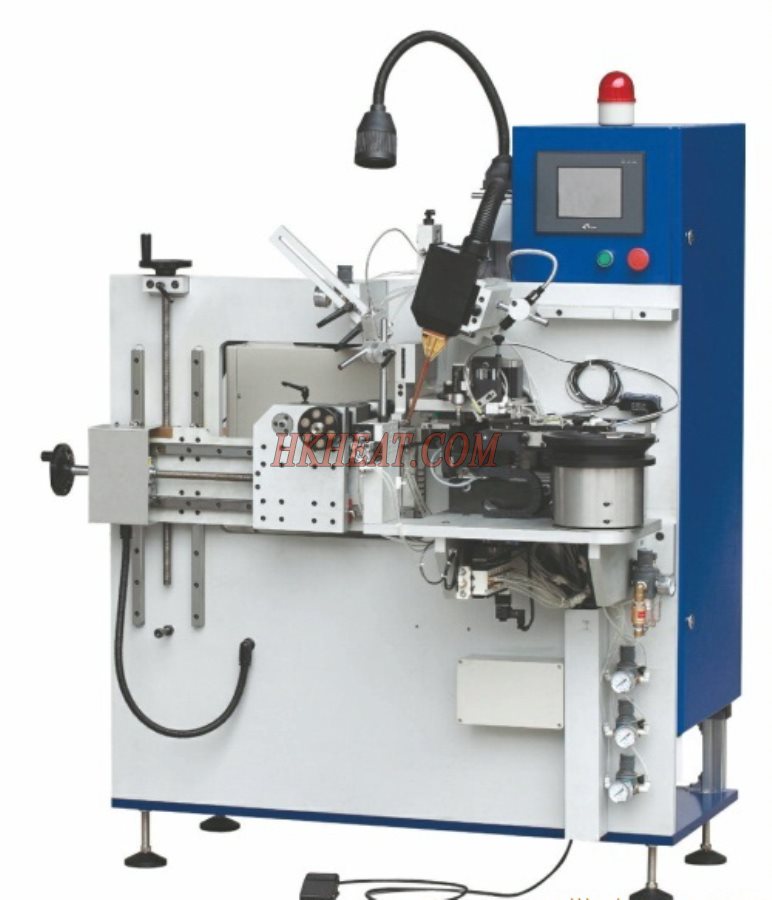

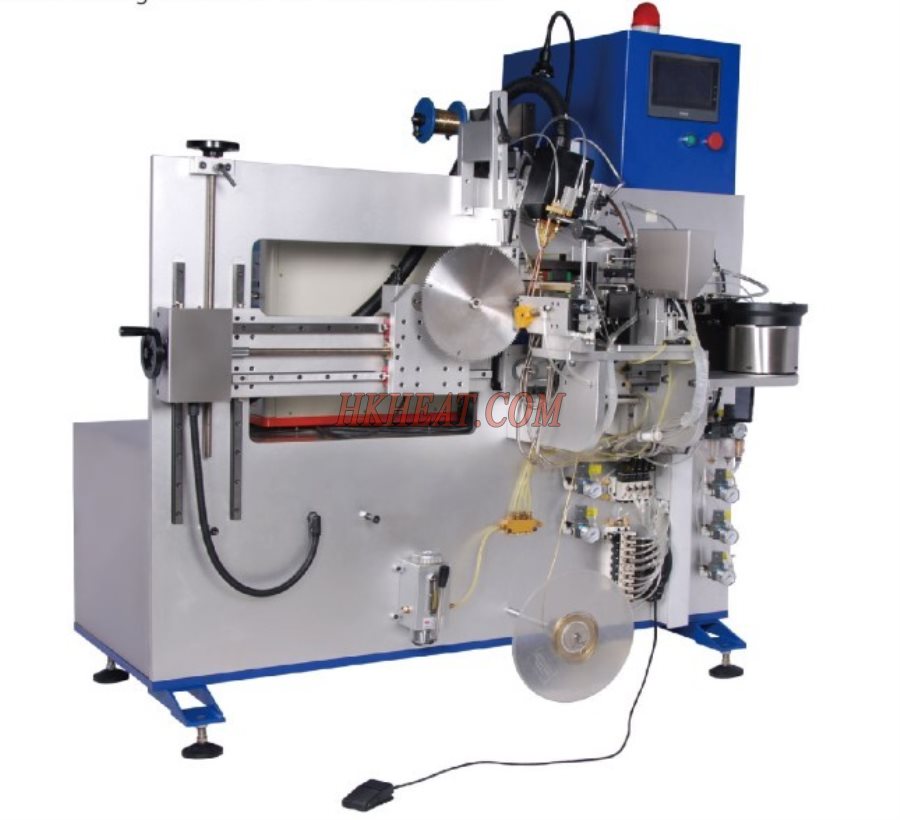

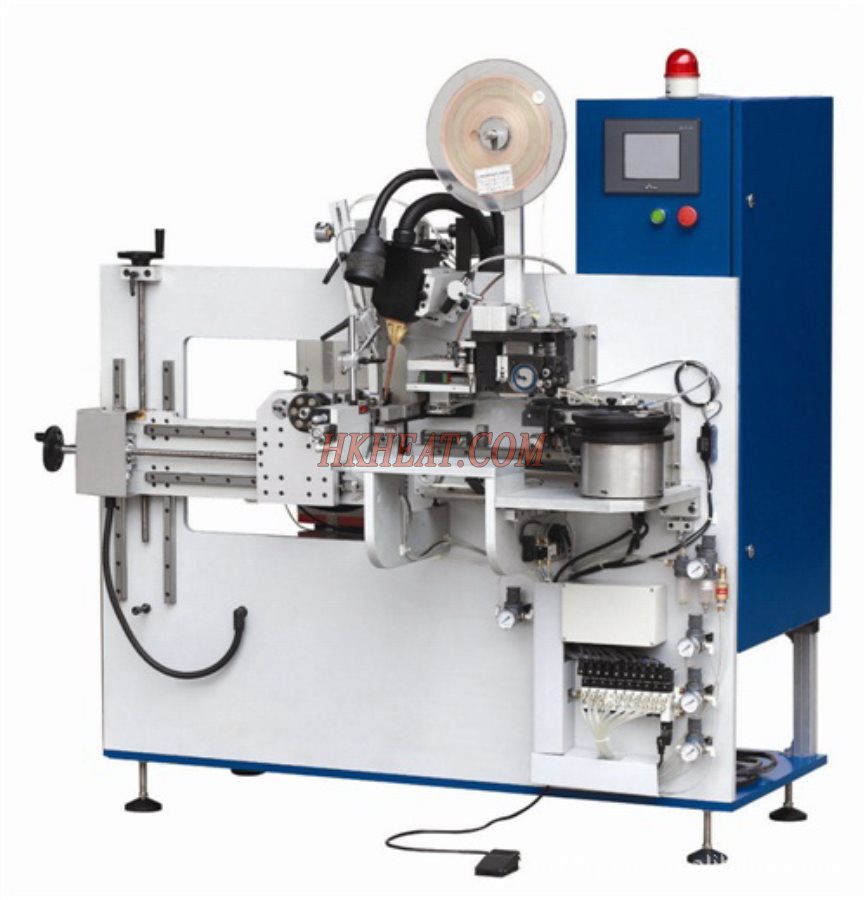

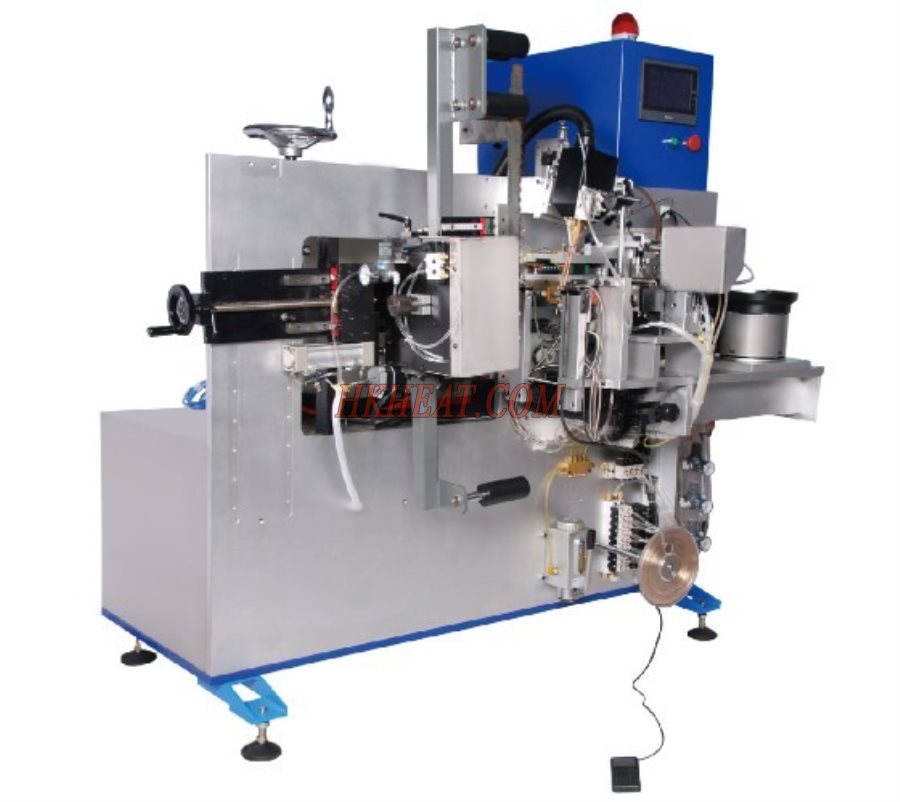

HK-CNC auto saw tooth induction welding machine

2017/08/03 3110

Technical Features:
1, Automatic choose gear, feeding, wire feed welding process
2, Accurate, welding firm, stable quality
3, New gear selection system
4, Temperature control the welding process can be fine-turning and auto-tempering function, to adapt to a variety of special welding requirements.
5, The whole process of computer control, with memory and query functions
6, CNC control, safe and reliable
7, Advanced UHF heating controller, small size, low power consumption and high efficiency
8, Graphical user interface, clear concise, easy to grasp the operation of the program
9, Can be designed according to customers' special requirements

Saw Blade OD	80~500mm	Working Power	6KW
Tooth Face Angle	-5º~+25º	Total Power	6.5KW
Tooth Length	3.5~14mm	Working Pressure	6kg/cm2
Tooth Width	1.5~6.5mm	Ventilated Ability	>=5m3/Min
Tooth Thickness	1.5~3.0mm	Cooling System Power	1.5KW
Welding Ability	18t/Min	Cooling Water Flow Rate	22L/Min
Welding Accurate	<=0.05mm	Size	1200x960x1520mm
Power Supply	220V/50Hz	Net Weight	323kg
