HK-8KW-RF Air Cooled Induction Heater
2017/08/03 2004

Specification of Air Cooled Induction Heaters:

Item Description
Type HK-NKW-RF(N: 5~5000)
Absorbed Power 5KW~100KW / NKW(N>100)
Input Voltage 380VAC±10%, 50Hz|60Hz, 3 Phase
Environment Temperature -20℃~50℃
Environment Humidity ≤95%
Output Power Range 20%~100% stepless Regulation
Heat Transter Efficiency ≥95%
Power Factor ≥90%
Output Frequency Range 5KHz~40KHz
Communication Protocol RS485,modbus RTU
Display Programmable Digital Display
PID Power Control 0~5V
Induction Coil Air Cooled Type: Inductance:80-500μH, Cross Section Area:6mm2~50mm2, Length:20m~60m
Water Cooled Type: Customized
Lifetime >50000H

Specification of Induction Coil for Air Cooled Induction Heaters:

Type Absorbed Power Input Current Inductance
(μH)
Length
(m)
Coil Area
(mm2)
Frequency Input Voltage
HK-5KW-RF 5KW 8A 80~100 13~15 (Half-H) 6 5KHz ~ 40Khz 380VAC / 3 Phase
HK-8KW-RF 8KW 12A 200~220 35~40 (Half-H) 10
320~350 28~30 (H) 10
HK-15KW-RF 15KW 23A 130~150 28~30 (Half-H) 16
330~380 60~63 (H) 10
HK-20KW-RF 20KW 30A 80~100 25~28 (Half-H) 35
300~350 50~60 (H) 16
HK-30KW-RF 30KW 45A 60~80 20~30 (Half-H) 35
220~250 50~60 (H) 16
HK-40KW-RF 40KW 60A 150~200 40~53 (H) 25
HK-60KW-RF 60KW 90A 100~120 35~40 (H) 35/16*2
HK-80KW-RF 80KW 120A 80~110 40~43 (H) 50/35*2
HK-100KW-RF 100KW 150A 70~90 40~43 (H) 60/40*2

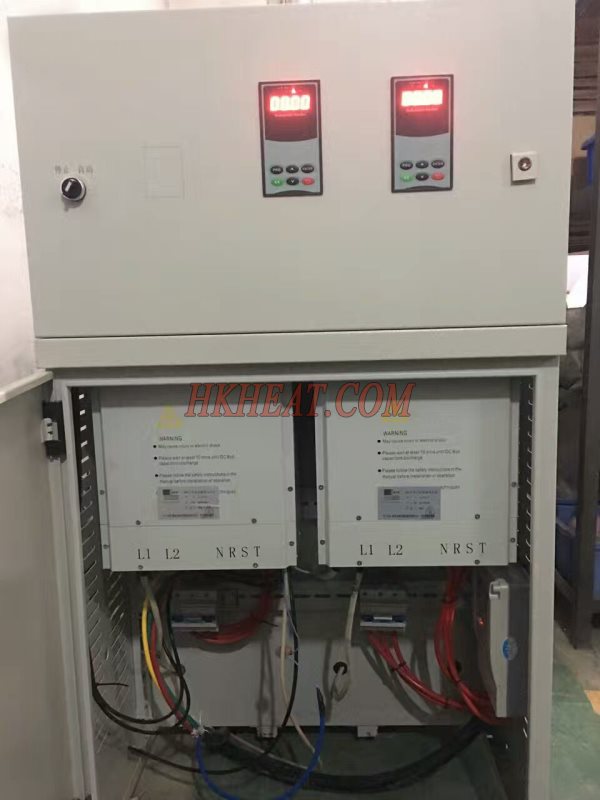

HK-8KW-RF full air cooled induction heater is more safer than burning gas to provide heating for house, more than 98% of output power from induction heater can be absorbed by water (1)
HK-8KW-RF full air cooled induction heater is more safer than burning gas to provide heating for house, more than 98% of output power from induction heater can be absorbed by water (1)

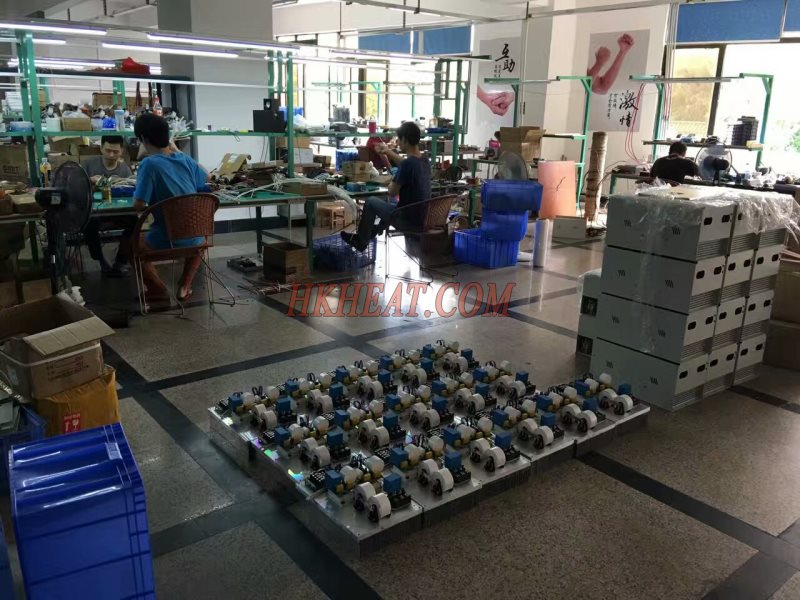

HK-8KW-RF full air cooled induction heater is more safer than burning gas to provide heating for house, more than 98% of output power from induction heater can be absorbed by water (2)
HK-8KW-RF full air cooled induction heater is more safer than burning gas to provide heating for house, more than 98% of output power from induction heater can be absorbed by water (2)

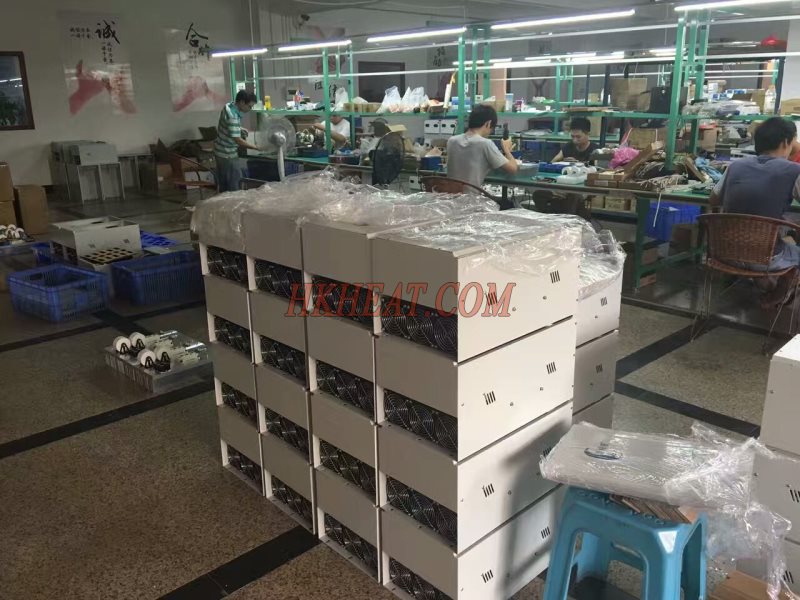

HK-8KW-RF full air cooled induction heater is more safer than burning gas to provide heating for house, more than 98% of output power from induction heater can be absorbed by water (3)
HK-8KW-RF full air cooled induction heater is more safer than burning gas to provide heating for house, more than 98% of output power from induction heater can be absorbed by water (3)

HK-8KW-RF full air cooled induction heater with long flexible induction coil
HK-8KW-RF full air cooled induction heater with long flexible induction coil
