HK-80KW-RF Air Cooled Induction Heater

2017/08/03 1923

Specification of Air Cooled Induction Heaters:

Item	Description
Type	HK-NKW-RF(N: 5~5000)
Absorbed Power	5KW~100KW / NKW(N>100)
Input Voltage	380VAC±10%, 50Hz\|60Hz, 3 Phase
Environment Temperature	-20℃~50℃
Environment Humidity	≤95%
Output Power Range	20%~100% stepless Regulation
Heat Transter Efficiency	≥95%
Power Factor	≥90%
Output Frequency Range	5KHz~40KHz
Communication Protocol	RS485，modbus RTU
Display	Programmable Digital Display
PID Power Control	0~5V
Induction Coil	Air Cooled Type: Inductance:80-500μH, Cross Section Area:6mm²~50mm², Length:20m~60m
Induction Coil	Water Cooled Type: Customized
Lifetime	>50000H

Specification of Induction Coil for Air Cooled Induction Heaters:

Type	Absorbed Power	Input Current	Inductance (μH)	Length (m)	Coil Area (mm²)	Frequency	Input Voltage
HK-5KW-RF	5KW	8A	80~100	13~15 (Half-H)	6	5KHz ~ 40Khz	380VAC / 3 Phase
HK-8KW-RF	8KW	12A	200~220	35~40 (Half-H)	10
HK-8KW-RF	8KW	12A	320~350	28~30 (H)	10
HK-15KW-RF	15KW	23A	130~150	28~30 (Half-H)	16
HK-15KW-RF	15KW	23A	330~380	60~63 (H)	10
HK-20KW-RF	20KW	30A	80~100	25~28 (Half-H)	35
HK-20KW-RF	20KW	30A	300~350	50~60 (H)	16
HK-30KW-RF	30KW	45A	60~80	20~30 (Half-H)	35
HK-30KW-RF	30KW	45A	220~250	50~60 (H)	16
HK-40KW-RF	40KW	60A	150~200	40~53 (H)	25
HK-60KW-RF	60KW	90A	100~120	35~40 (H)	35/16*2
HK-80KW-RF	80KW	120A	80~110	40~43 (H)	50/35*2
HK-100KW-RF	100KW	150A	70~90	40~43 (H)	60/40*2

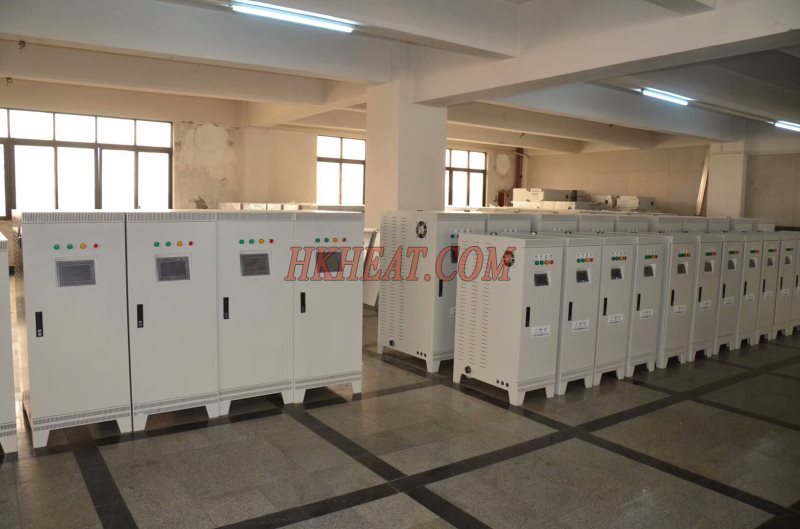

HK-80KW-RF full air cooled induction heater is more energy saving than burning coal to provide heating for house, more than 98% of output power from induction heater can be absorbed by water (1)

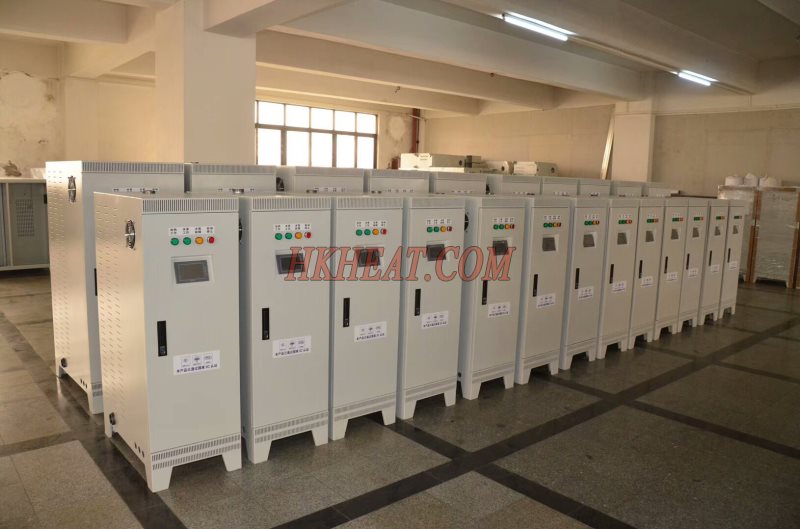

HK-80KW-RF full air cooled induction heater is more energy saving than burning coal to provide heating for house, more than 98% of output power from induction heater can be absorbed by water (3)

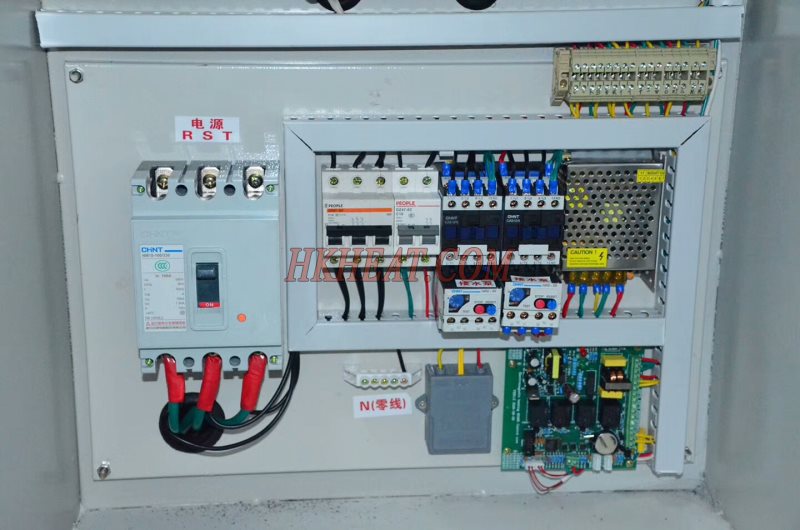

full air cooled HK-80KW-RF induction heater (2)

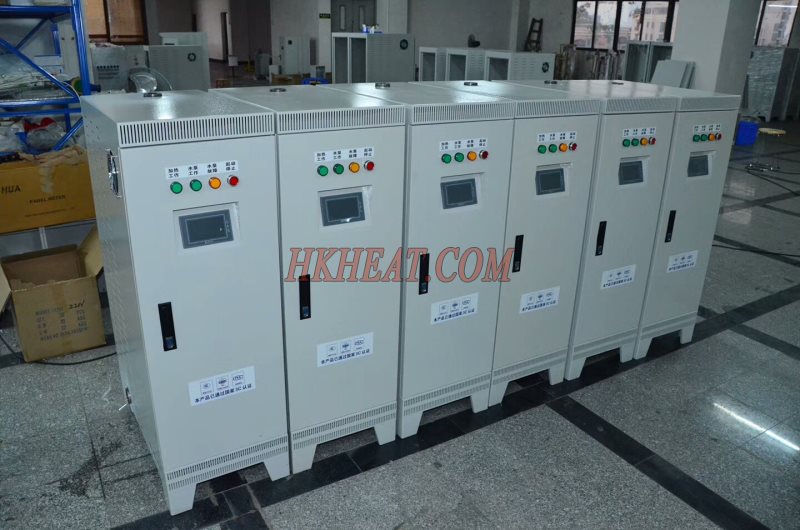

HK-80KW-RF full air cooled induction heater is more energy saving than burning coal to provide heating for house, more than 98% of output power from induction heater can be absorbed by water (2)

full air cooled HK-80KW-RF induction heater (1)
