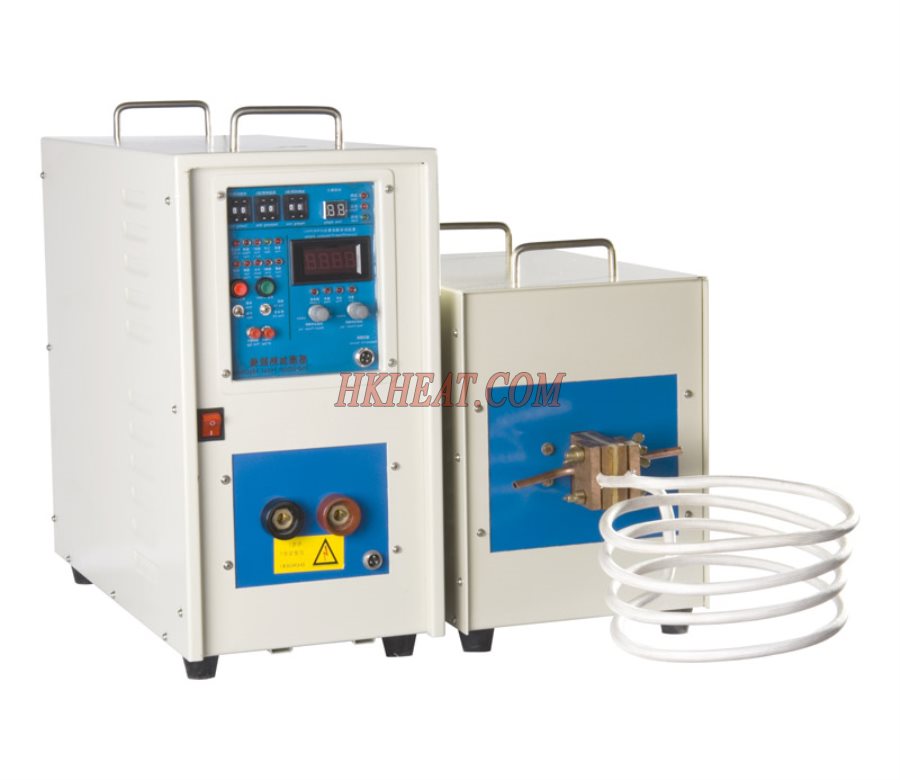

HK-60AB-MF Medium Frequency Induction Heater

2017/08/03 1999

Specification of Medium Frequency Induction Heating Machines:

Type	Power Supply	Max. Input Current	Max. Absorbed Power	Max. Frequency	Input Voltage	Cooling Water	Normal Size(cm)	Net Weight(kg)
HK-15C-MF	15KVA	36A	8KW	20KHz	220VAC, 50Hz, Single Phase	>0.2 MPa, 8 L/Min, <40 ºC	54X55X45 / Customized	42 / Customized
HK-25C-MF	25KVA	30A	20KW	20KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 9L/Min, <40ºC	74X58X55 / Customized	68 / Customized
HK-25AB-MF	25KVA	37A	25KW	20KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 9L/Min, <40ºC	Main: 64X28X55 Head: 51X26X41	40+30
HK-40AB-MF	42KVA	60A	40KW	20KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 10L/Min, <40ºC	Main: 64X28X55 Head: 51X26X41	48+40
HK-60AB-MF	63KVA	91A	60KW	20KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 14L/Min, <40ºC	Main: 78X37X62 Head: 56X26X47	60+42
HK-80AB-MF	86KVA	120A	80KW	20KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 18L/Min, <40ºC	Main: 106X60X72 Head: 85X42X65	85+65
HK-100AB-MF	110KVA	150A	100KW	20KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 20L/Min, <40ºC	Main: 106X79X70 Head: 86X42X65	100+70
HK-120AB-MF	128KVA	180A	120KW	20KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 25L/Min, <40ºC	Main: 106X70X87 Head: 85X42X75	115+75
HK-160AB-MF	170KVA	240A	160KW	20KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 35L/Min, <40ºC	Main: 106X70X87 Head: 85X42X75	135+85
HK-200AB-MF	220KVA	300A	200KW	20KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 50L/Min, <40ºC	Main: 130X115X80 Head: 95X50X85	280+120
HK-250AB-MF	270KVA	375A	250KW	20KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 70L/Min, <40ºC	Main: 160X116X80 Head: 156X50X85	340+150
HK-300AB-MF	320KVA	450A	300KW	20KHz	380VAC, 50Hz, 3 Phase	Customized	Customized	Customized
HK-400AB-MF	430KVA	600A	400KW	20KHz	380VAC, 50Hz, 3 Phase	Customized	Customized	Customized
HK-500AB-MF	540KVA	750A	500KW	20KHz	380VAC, 50Hz, 3 Phase	Customized	Customized	Customized
HK-600AB-MF	950KVA	900A	600KW	20KHz	380VAC, 50Hz, 3 Phase	Customized	Customized	Customized
