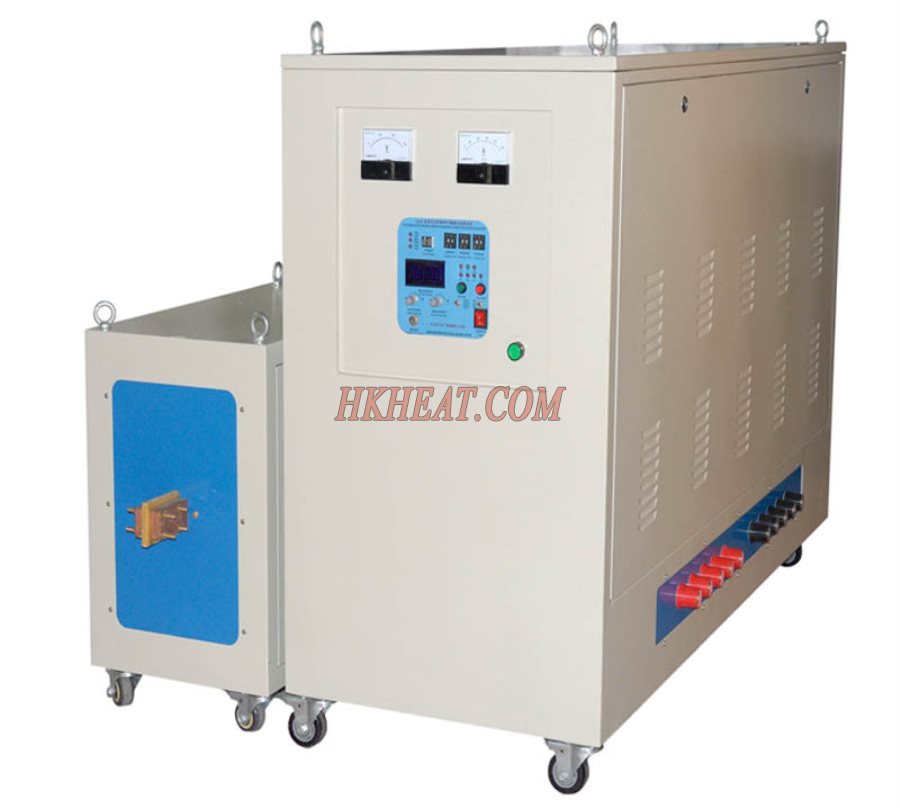

HK-500AB-HF High Frequency Induction Heater

2017/08/03 1844

Specification of High Frequency Induction Heating Machines:

Type	Power Supply	Max. Input Current	Max. Absorbed Power	Max. Frequency	Input Voltage	Cooling Water	Normal Size(cm)	Net Weight(kg)
HK-15A-HF	15KVA	36A	8KW	100KHz	220VAC, 50Hz, Single Phase / 380VAC, 50Hz, 3 Phase	>0.2 MPa, 7.6 L/Min, <40 ºC	54X25X45	22
HK-15AB-HF	15KVA	36A	8KW	100KHz	220VAC, 50Hz, Single Phase / 380VAC, 50Hz, 3 Phase	>0.2 MPa, 7.6L/Min, <40ºC	Main:54X25X45 Head:41X26X41	24
HK-25A-HF	25KVA	30A	20KW	100KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 8L/Min, <40ºC	Main: 64X28X55 Head: 51X26X41	48
HK-25AB-HF	25KVA	30A	20KW	100KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 8L/Min, <40ºC	Main: 64X28X55 Head: 51X26X41	30+20
HK-40AB-HF	42KVA	60A	40KW	100KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 9L/Min, <40ºC	Main: 64X28X55 Head: 51X26X41	40+32
HK-60AB-HF	63KVA	91A	60KW	100KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 12L/Min, <40ºC	Main: 78X37X62 Head: 56X26X47	54+42
HK-80AB-HF	86KVA	120A	80KW	60KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 16L/Min, <40ºC	Main: 106X60X72 Head: 85X42X65	85+65
HK-100AB-HF	110KVA	150A	100KW	60KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 18L/Min, <40ºC	Main: 106X79X70 Head: 86X42X65	100+70
HK-120AB-HF	128KVA	180A	120KW	40KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 20L/Min, <40ºC	Main: 106X70X87 Head: 85X42X75	115+75
HK-160AB-HF	170KVA	240A	160KW	40KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 30L/Min, <40ºC	Main: 106X70X87 Head: 85X42X75	135+85
HK-200AB-HF	220KVA	300A	200KW	40KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 40L/Min, <40ºC	Main: 130X115X80 Head: 95X50X85	280+120
HK-250AB-HF	270KVA	375A	250KW	40KHz	380VAC, 50Hz, 3 Phase	>0.2 MPa, 50L/Min, <40ºC	Main: 160X116X80 Head: 156X50X85	340+150
HK-300AB-HF	320KVA	450A	300KW	40KHz	380VAC, 50Hz, 3 Phase	Customized	Customized	Customized
HK-400AB-HF	430KVA	600A	400KW	40KHz	380VAC, 50Hz, 3 Phase	Customized	Customized	Customized
HK-500AB-HF	540KVA	750A	500KW	40KHz	380VAC, 50Hz, 3 Phase	Customized	Customized	Customized
HK-600AB-HF	950KVA	900A	600KW	40KHz	380VAC, 50Hz, 3 Phase	Customized	Customized	Customized
