HK-25AB-HF High Frequency Induction Heater
2017/08/03 1876

Specification of High Frequency Induction Heating Machines:

Type Power Supply Max. Input Current Max. Absorbed Power Max. Frequency Input Voltage Cooling Water Normal Size(cm) Net Weight(kg)
HK-15A-HF 15KVA 36A 8KW 100KHz 220VAC, 50Hz, Single Phase /
380VAC, 50Hz, 3 Phase
>0.2 MPa, 7.6 L/Min, <40 ºC  54X25X45 22
HK-15AB-HF 15KVA 36A 8KW 100KHz 220VAC, 50Hz, Single Phase /
380VAC, 50Hz, 3 Phase
>0.2 MPa, 7.6L/Min, <40ºC  Main:54X25X45
Head:41X26X41
24
HK-25A-HF 25KVA 30A 20KW 100KHz 380VAC, 50Hz, 3 Phase >0.2 MPa, 8L/Min, <40ºC Main: 64X28X55
Head: 51X26X41
48
HK-25AB-HF 25KVA 30A 20KW 100KHz 380VAC, 50Hz, 3 Phase >0.2 MPa, 8L/Min, <40ºC Main: 64X28X55
Head: 51X26X41
30+20
HK-40AB-HF 42KVA 60A 40KW 100KHz 380VAC, 50Hz, 3 Phase >0.2 MPa, 9L/Min, <40ºC Main: 64X28X55
Head: 51X26X41
40+32
HK-60AB-HF 63KVA 91A 60KW 100KHz 380VAC, 50Hz, 3 Phase >0.2 MPa, 12L/Min, <40ºC Main: 78X37X62
Head: 56X26X47
54+42
HK-80AB-HF 86KVA 120A 80KW 60KHz 380VAC, 50Hz, 3 Phase >0.2 MPa, 16L/Min, <40ºC Main: 106X60X72
Head: 85X42X65
85+65
HK-100AB-HF 110KVA 150A 100KW 60KHz 380VAC, 50Hz, 3 Phase >0.2 MPa, 18L/Min, <40ºC Main: 106X79X70
Head: 86X42X65
100+70
HK-120AB-HF 128KVA 180A 120KW 40KHz 380VAC, 50Hz, 3 Phase >0.2 MPa, 20L/Min, <40ºC Main: 106X70X87
Head: 85X42X75
115+75
HK-160AB-HF 170KVA 240A 160KW 40KHz 380VAC, 50Hz, 3 Phase >0.2 MPa, 30L/Min, <40ºC Main: 106X70X87
Head: 85X42X75
135+85
HK-200AB-HF 220KVA 300A 200KW 40KHz 380VAC, 50Hz, 3 Phase >0.2 MPa, 40L/Min, <40ºC Main: 130X115X80
Head: 95X50X85
280+120
HK-250AB-HF 270KVA 375A 250KW 40KHz 380VAC, 50Hz, 3 Phase >0.2 MPa, 50L/Min, <40ºC Main: 160X116X80
Head: 156X50X85
340+150
HK-300AB-HF 320KVA 450A 300KW 40KHz 380VAC, 50Hz, 3 Phase Customized Customized Customized
HK-400AB-HF 430KVA 600A 400KW 40KHz 380VAC, 50Hz, 3 Phase Customized Customized Customized
HK-500AB-HF 540KVA 750A 500KW 40KHz 380VAC, 50Hz, 3 Phase Customized Customized Customized
HK-600AB-HF 950KVA 900A 600KW 40KHz 380VAC, 50Hz, 3 Phase Customized Customized Customized

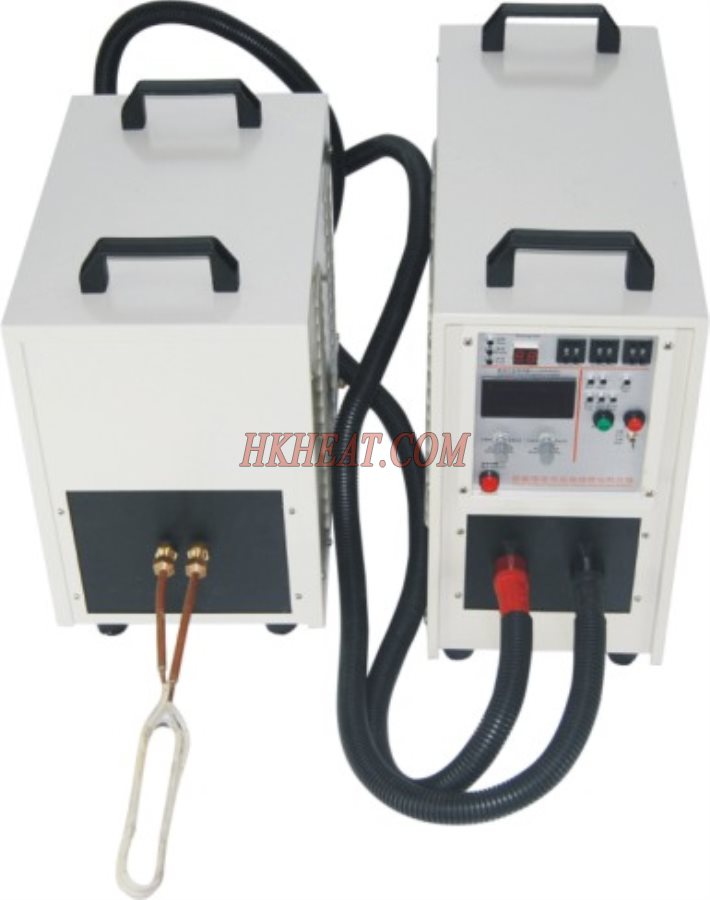

HK-25AB-HF high frequency induction heater (2)
HK-25AB-HF high frequency induction heater (2)

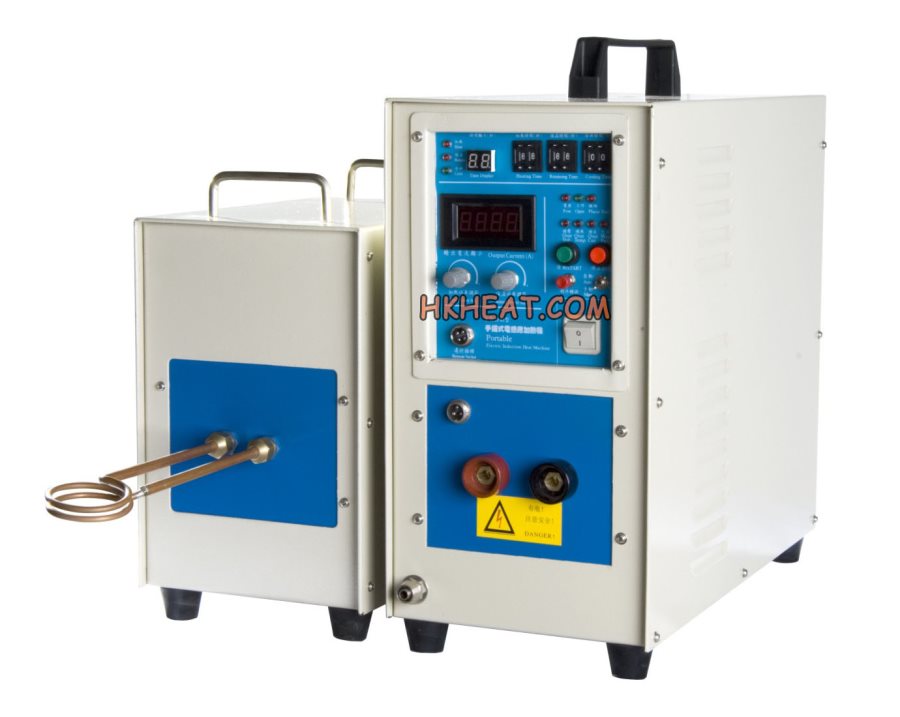

HK-25AB-HF high frequency induction heater
HK-25AB-HF high frequency induction heater

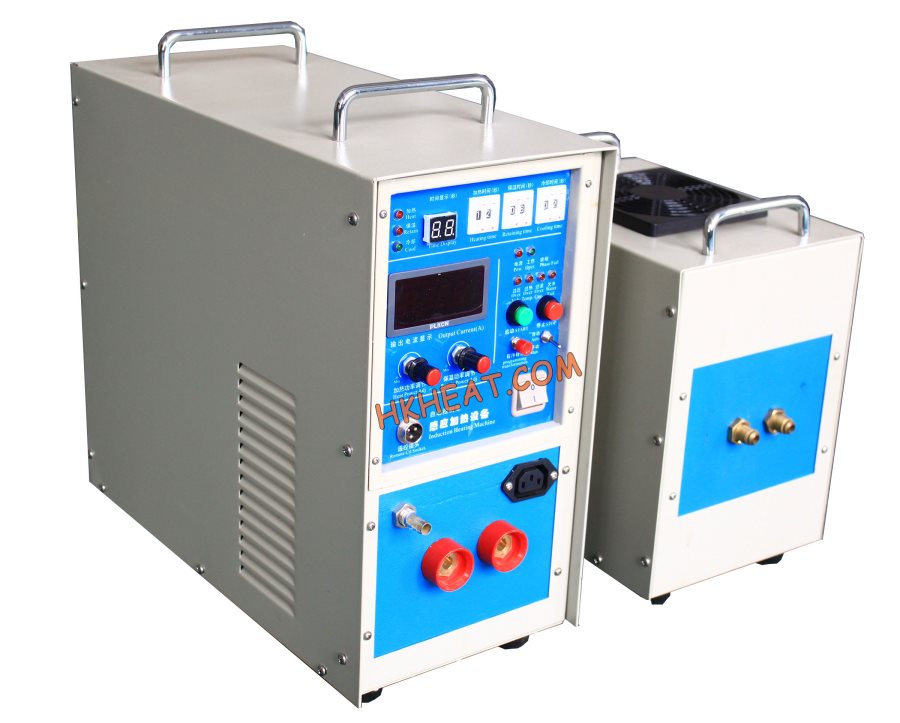

HK-25AB-HF high frequency induction heating machine
HK-25AB-HF high frequency induction heating machine
