HK-100KW-RF Air Cooled Induction Heater-Hongyibo Induction Heater

2017/08/03 1913

Item	Description
Type	HK-NKW-RF(N: 5~5000)
Absorbed Power	5KW~100KW / NKW(N>100)
Input Voltage	380VAC±10%, 50Hz\|60Hz, 3 Phase
Environment Temperature	-20℃~50℃
Environment Humidity	≤95%
Output Power Range	20%~100% stepless Regulation
Heat Transter Efficiency	≥95%
Power Factor	≥90%
Output Frequency Range	5KHz~40KHz
Communication Protocol	RS485，modbus RTU
Display	Programmable Digital Display
PID Power Control	0~5V
Induction Coil	Air Cooled Type: Inductance:80-500μH, Cross Section Area:6mm²~50mm², Length:20m~60m
Induction Coil	Water Cooled Type: Customized
Lifetime	>50000H

Type	Absorbed Power	Input Current	Inductance (μH)	Length (m)	Coil Area (mm²)	Frequency	Input Voltage
HK-5KW-RF	5KW	8A	80~100	13~15 (Half-H)	6	5KHz ~ 40Khz	380VAC / 3 Phase
HK-8KW-RF	8KW	12A	200~220	35~40 (Half-H)	10
HK-8KW-RF	8KW	12A	320~350	28~30 (H)	10
HK-15KW-RF	15KW	23A	130~150	28~30 (Half-H)	16
HK-15KW-RF	15KW	23A	330~380	60~63 (H)	10
HK-20KW-RF	20KW	30A	80~100	25~28 (Half-H)	35
HK-20KW-RF	20KW	30A	300~350	50~60 (H)	16
HK-30KW-RF	30KW	45A	60~80	20~30 (Half-H)	35
HK-30KW-RF	30KW	45A	220~250	50~60 (H)	16
HK-40KW-RF	40KW	60A	150~200	40~53 (H)	25
HK-60KW-RF	60KW	90A	100~120	35~40 (H)	35/16*2
HK-80KW-RF	80KW	120A	80~110	40~43 (H)	50/35*2
HK-100KW-RF	100KW	150A	70~90	40~43 (H)	60/40*2

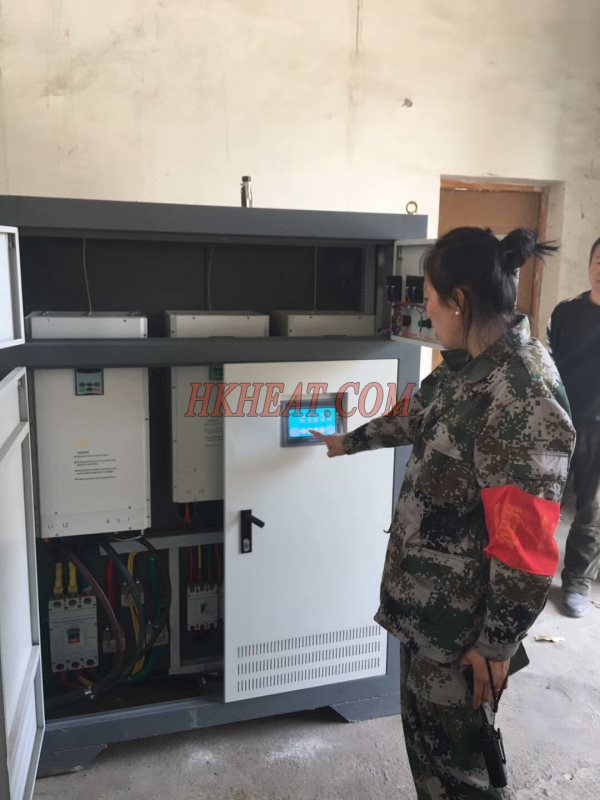

100KW full air cooled induction heater for providing heating to school house (1)

100KW full air cooled induction heater for providing heating to school house (2)

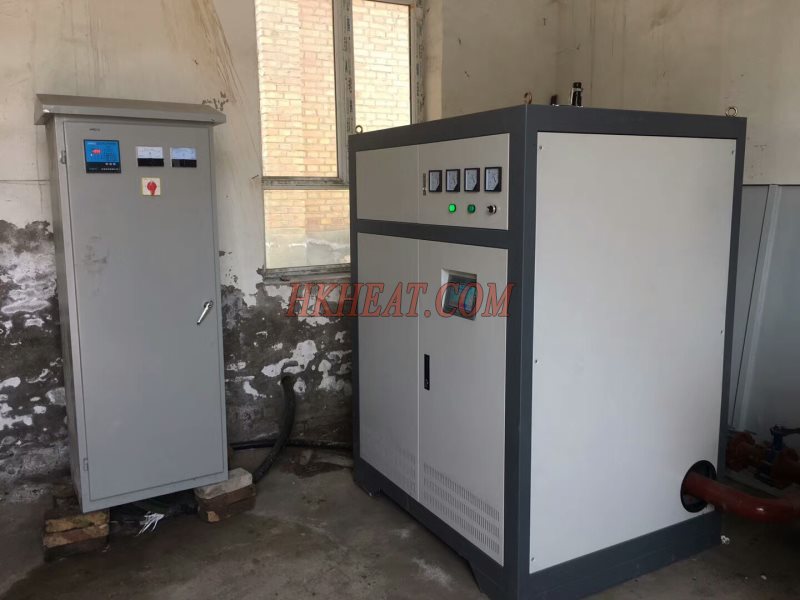

100KW full air cooled induction heater for providing heating to school house (3)

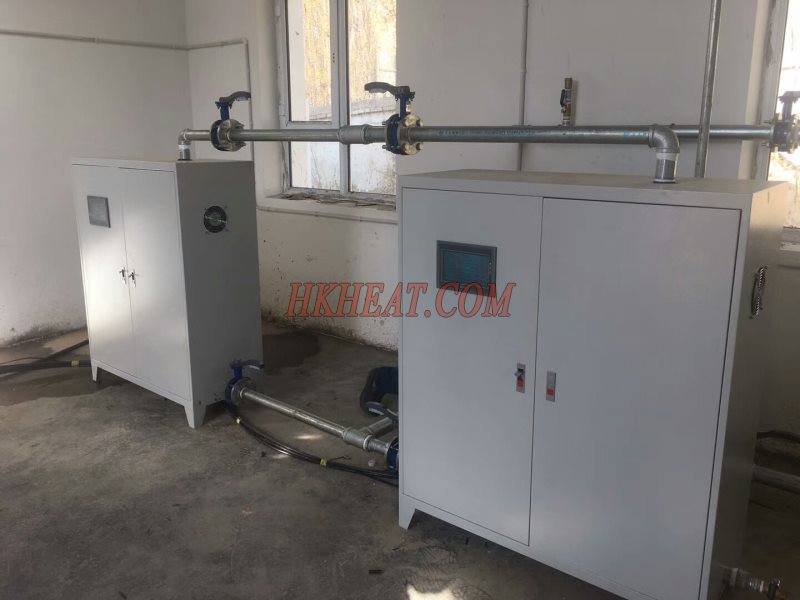

100KW full air cooled induction heater for providing heating to school house (4)

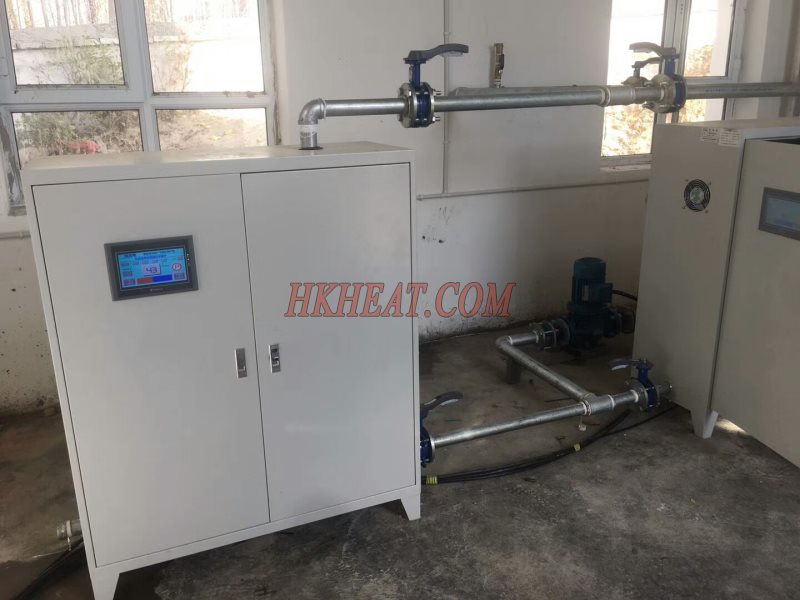

100KW full air cooled induction heater for providing heating to school house (5)

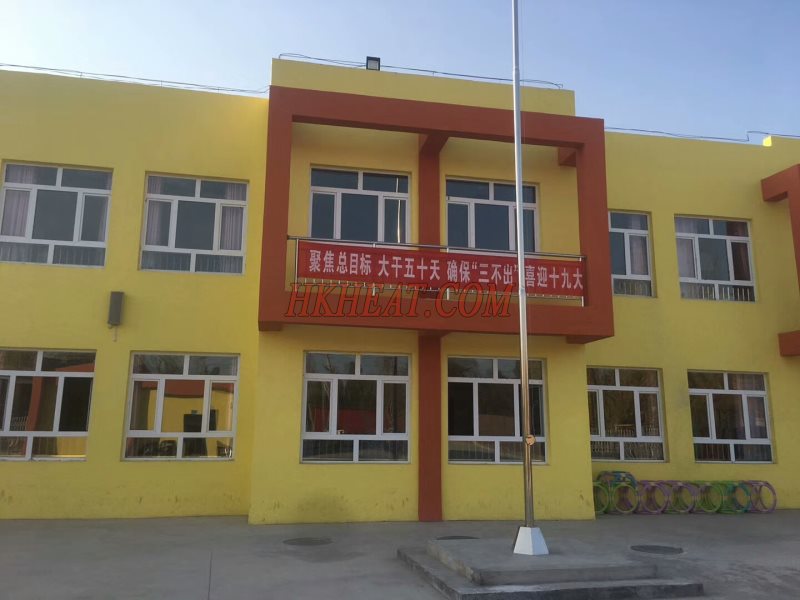

100KW full air cooled induction heater for providing heating to school house (6)

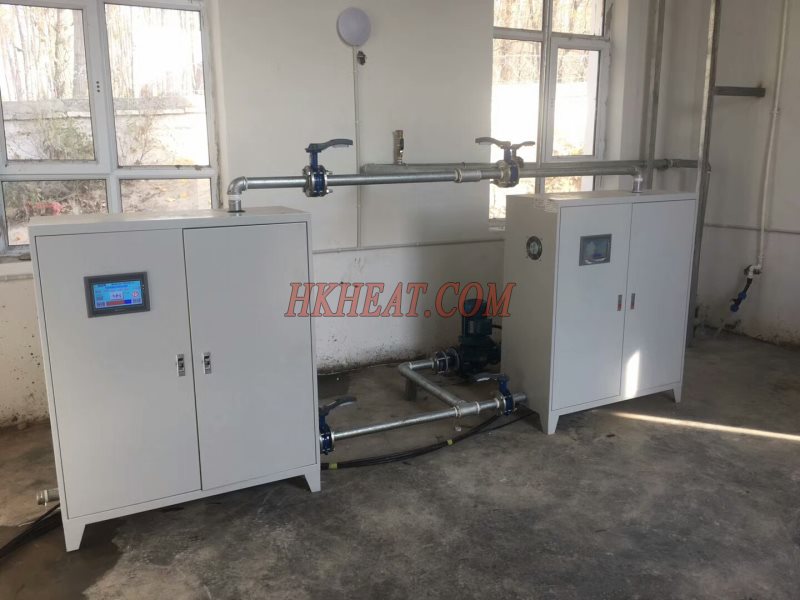

100KW full air cooled induction heater for providing heating to school house (7)

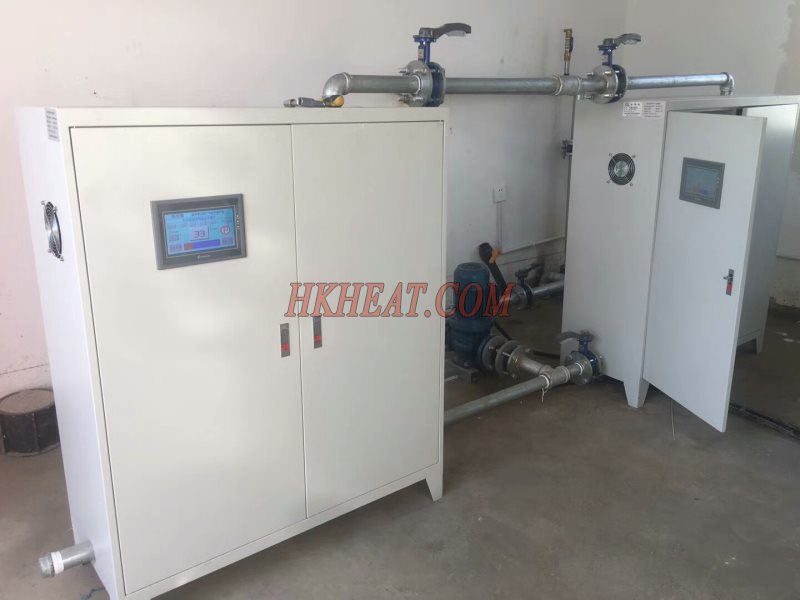

100KW full air cooled induction heater for providing heating to school house (8)

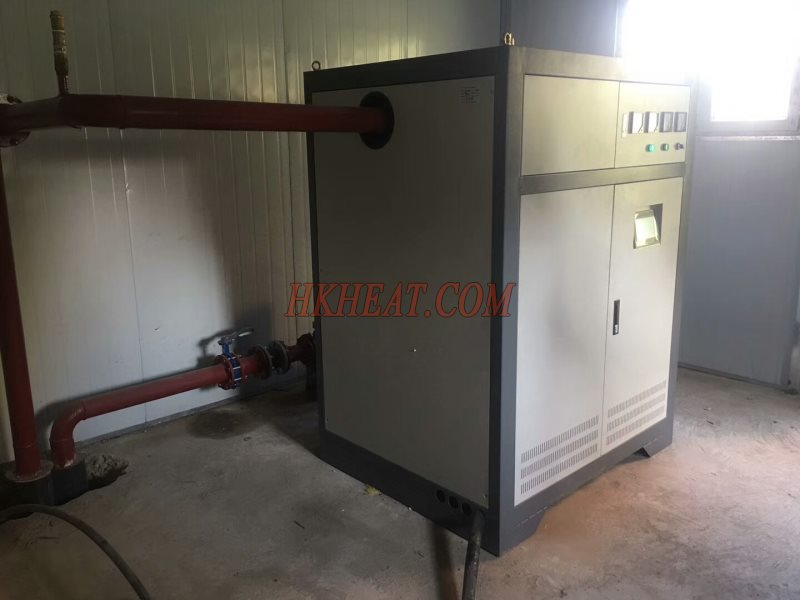

100KW full air cooled induction heater for providing heating to school house (9)
