Air Cooled DSP Induction Heater
2017/08/03 1908

Main type of DSP Air Cooled Induction Heating Machines:

Type Output Power Input Current Output Frequency Input Voltage
HK-DSP20AB-RF / HK-DSP20C-RF 20KVA 43A 30KHz ~ 60KHz 380VAC / 3 Phase
HK-DSP30AB-RF / HK-DSP30C-RF 30KVA 51A 30KHz ~ 60KHz 380VAC / 3 Phase
HK-DSP40AB-RF / HK-DSP40C-RF 40KVA 68A 30KHz ~ 60KHz 380VAC / 3 Phase
HK-DSP60AB-RF / HK-DSP60C-RF 60KVA 101A 30KHz ~ 60KHz 380VAC / 3 Phase
HK-DSP80AB-RF / HK-DSP80C-RF 80KVA 135A 30KHz ~ 60KHz 380VAC / 3 Phase
HK-DSP100AB-RF / HK-DSP100C-RF 100KVA 164A 30KHz ~ 60KHz 380VAC / 3 Phase
HK-DSP120AB-RF / HK-DSP120C-RF 120KVA 203A 30KHz ~ 60KHz 380VAC / 3 Phase
HK-DSP160AB-RF / HK-DSP160C-RF 160KVA 270A 30KHz ~ 60KHz 380VAC / 3 Phase
HK-DSP240AB-RF / HK-DSP240C-RF 240KVA 406A 30KHz ~ 60KHz 380VAC / 3 Phase
HK-DSP320AB-RF / HK-DSP320C-RF 320KVA 540A 30KHz ~ 60KHz 380VAC / 3 Phase

Specification of DSP Air Cooled Induction Heating Machines:

Item Description Remark
Output Power 20KW ~ 320KW
Output Frequency 1KHz ~ 20KHz Medium Frequency
30KHz ~ 60KHz High Frequency
Output Power Scope 1~100%
Closed-Loop Control Stability  0.5%
Efficiency ≥95% including isolation transformer
Power Factor ≥0.90
Over Load Ability 1.1 times of 1 minute
IP level IP20
Cooling Type air cooled for main machine and transformer water cooled or air cooled for induction coil
Environment Temperature -20℃~40℃ 0-100% load
40℃~55℃ output power derated
Environment Humidity ≤95% non condensing
Altitude ≤1500 meter output power derated when higher than 1500m

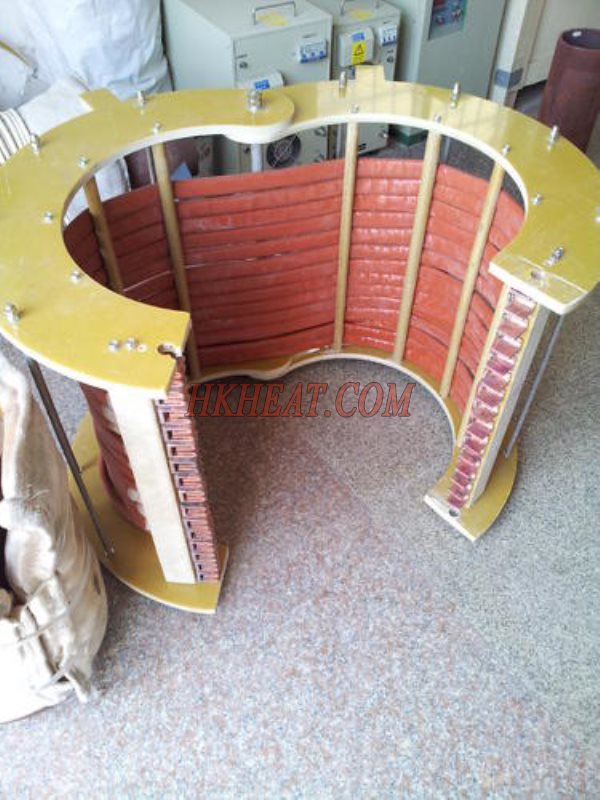

clamp air cooled induction coil for DSP air cooled induction heater
clamp air cooled induction coil for DSP air cooled induction heater

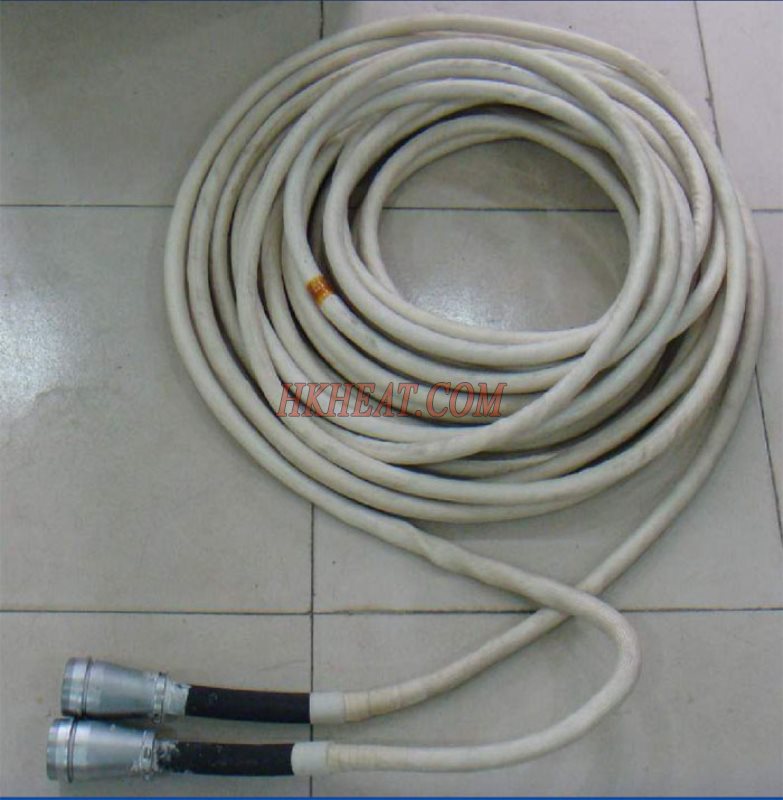

flexible air cooled connection cable for DSP air cooled induction heater
flexible air cooled connection cable for DSP air cooled induction heater

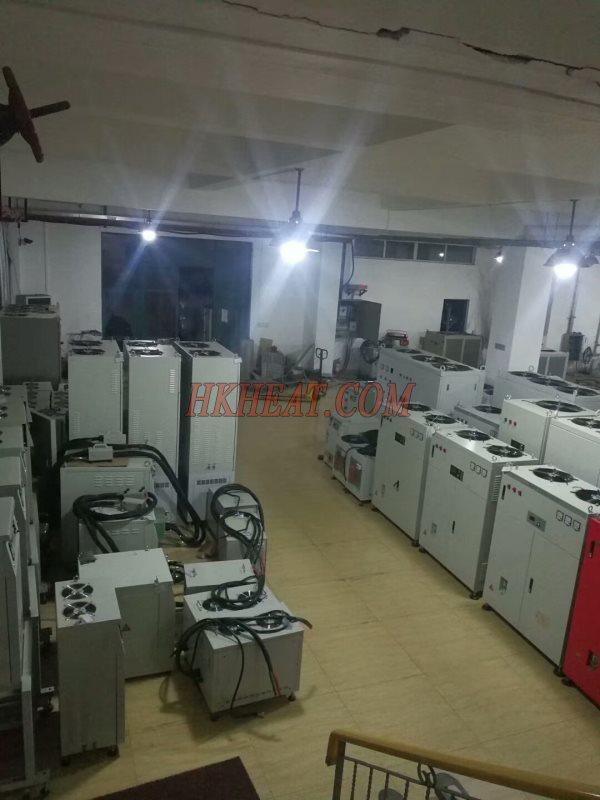

full air cooled DSP induction heaters (1)
full air cooled DSP induction heaters (1)

full air cooled DSP induction heaters (2)
full air cooled DSP induction heaters (2)

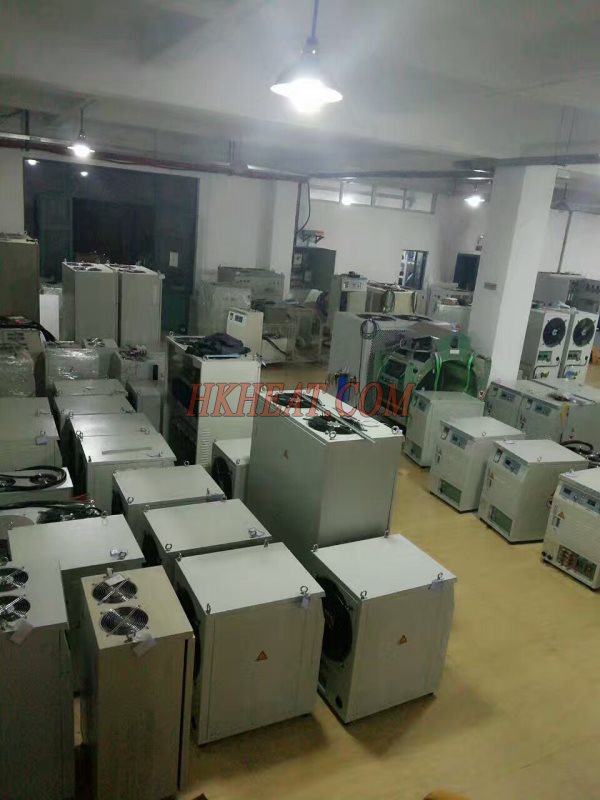

full air cooled DSP induction heaters (3)
full air cooled DSP induction heaters (3)

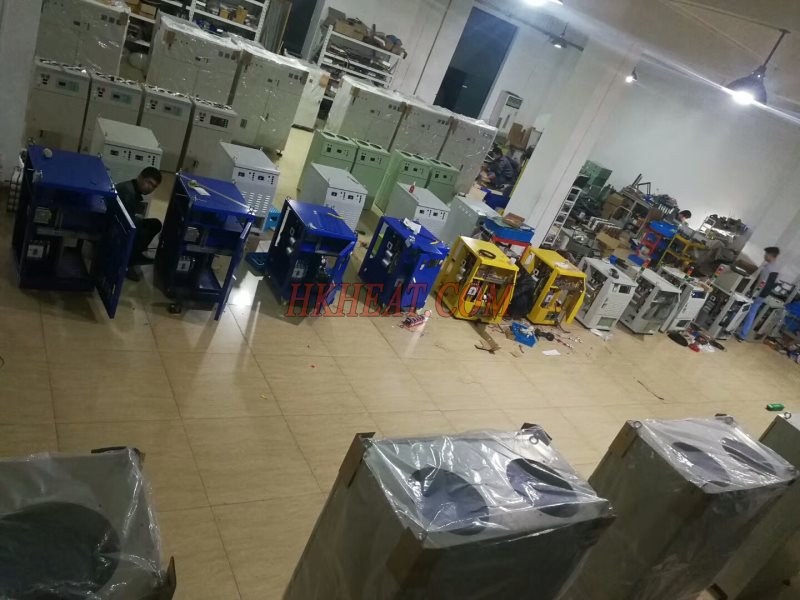

full air cooled DSP induction heaters (6)
full air cooled DSP induction heaters (6)

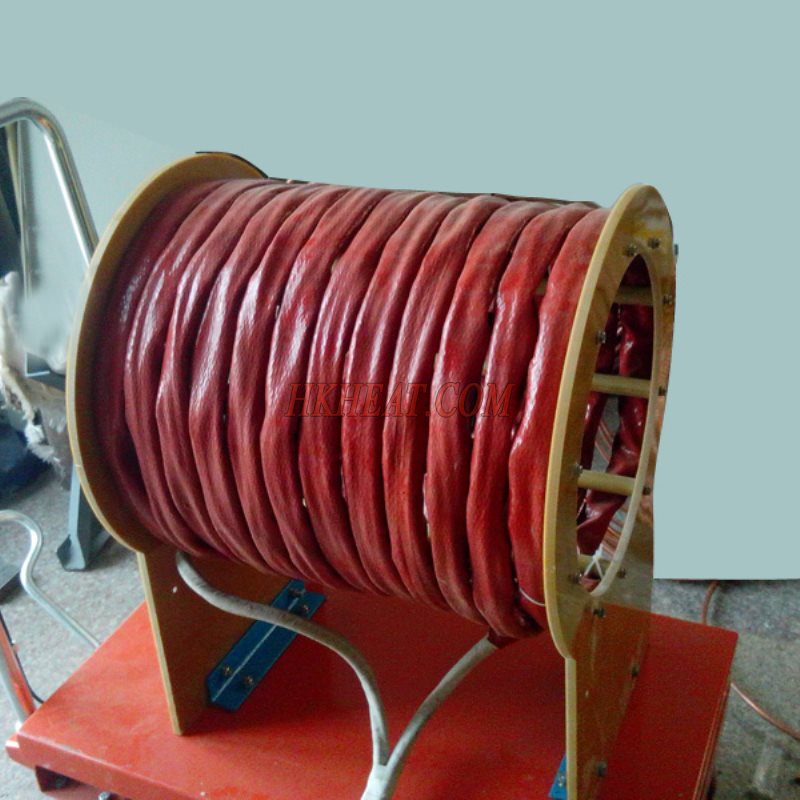

hydraumatic moveable flexible air cooled induction coil for DSP air cooled induction heater
hydraumatic moveable flexible air cooled induction coil for DSP air cooled induction heater

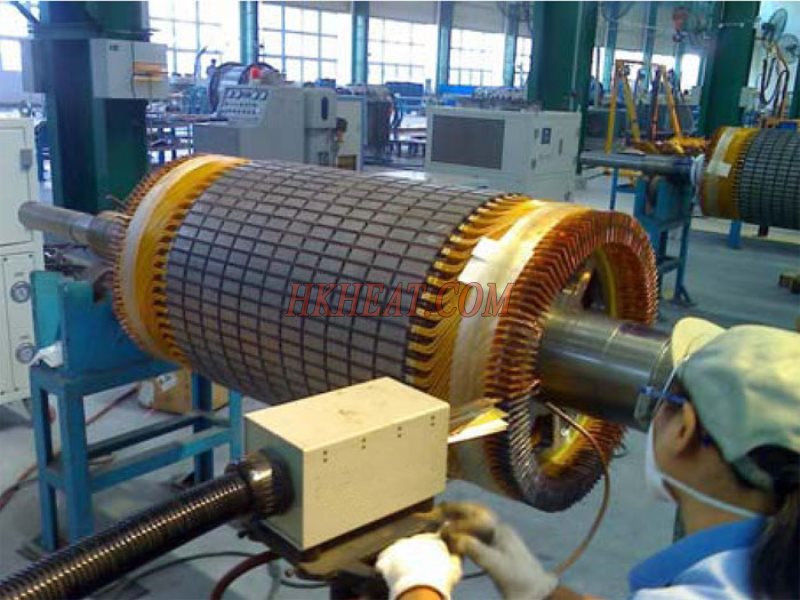

induction brass soldering stator ends of wind driven generator within 2 seconds
induction brass soldering stator ends of wind driven generator within 2 seconds

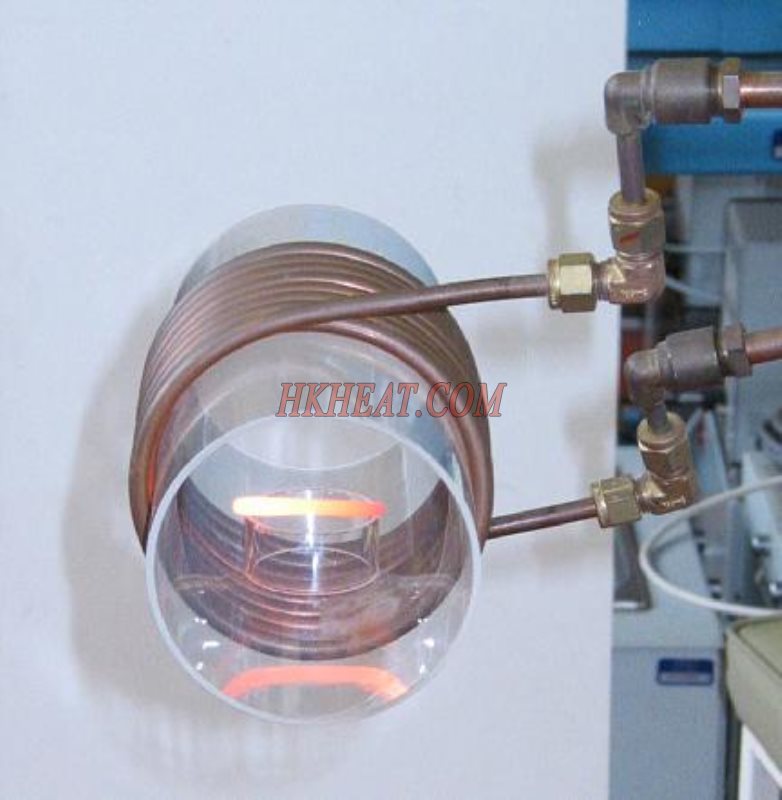

induction heating with quartz tube by DSP air cooeld induction heater
induction heating with quartz tube by DSP air cooeld induction heater

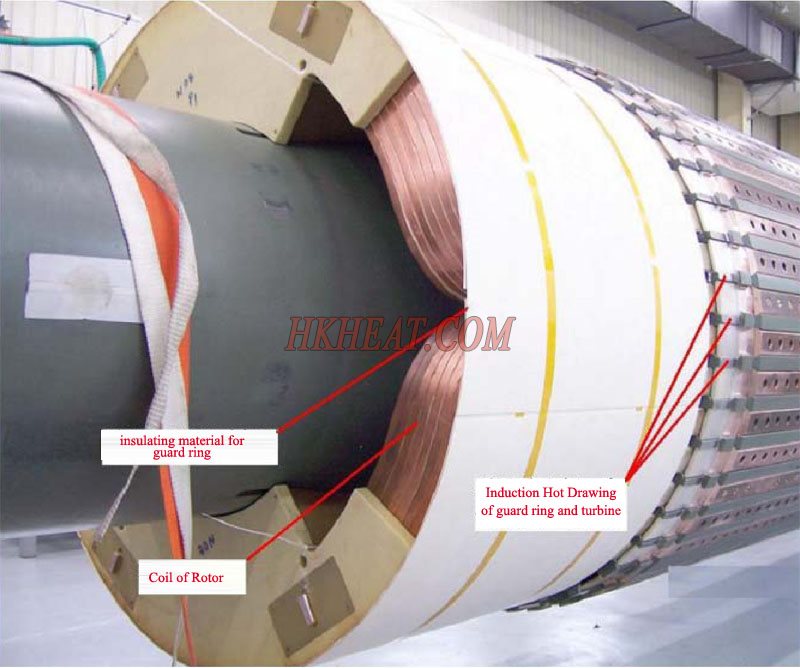

induction hot drawing for stainless guard ring of turbine by DSP air cooeld induction heater
induction hot drawing for stainless guard ring of turbine by DSP air cooeld induction heater

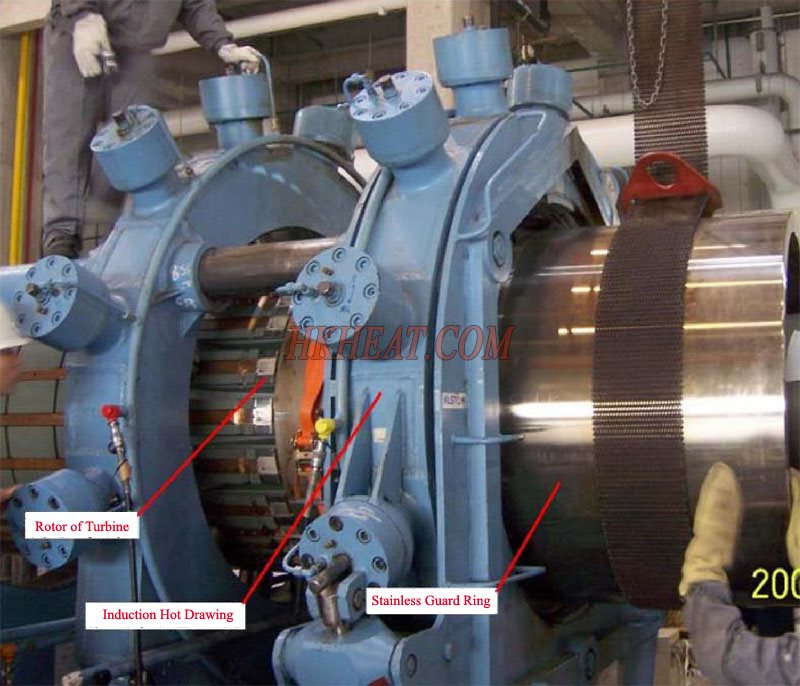

induction hot drawing of turbine by DSP air cooeld induction heater
induction hot drawing of turbine by DSP air cooeld induction heater

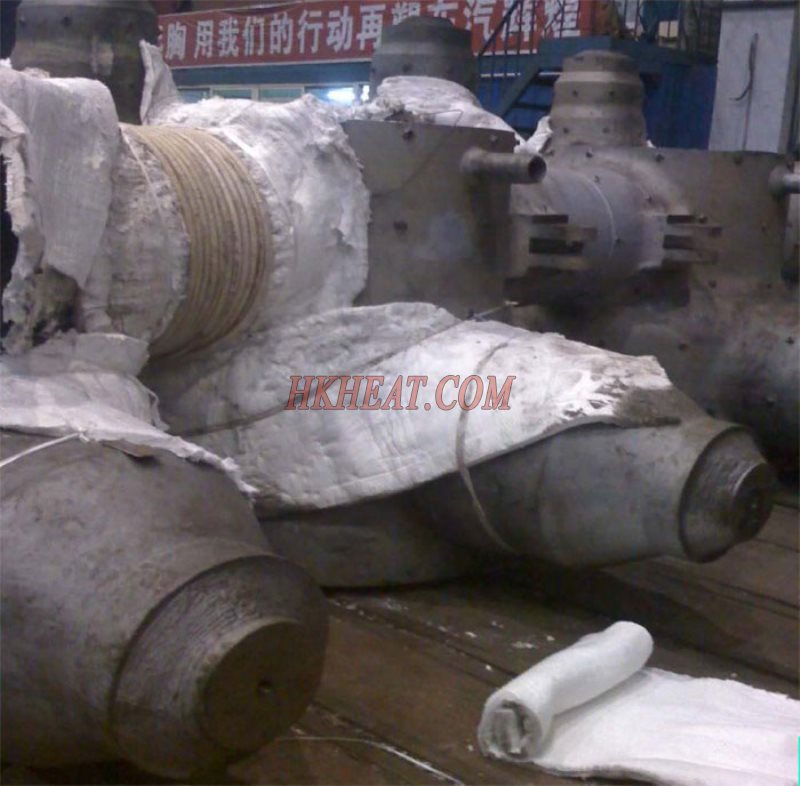

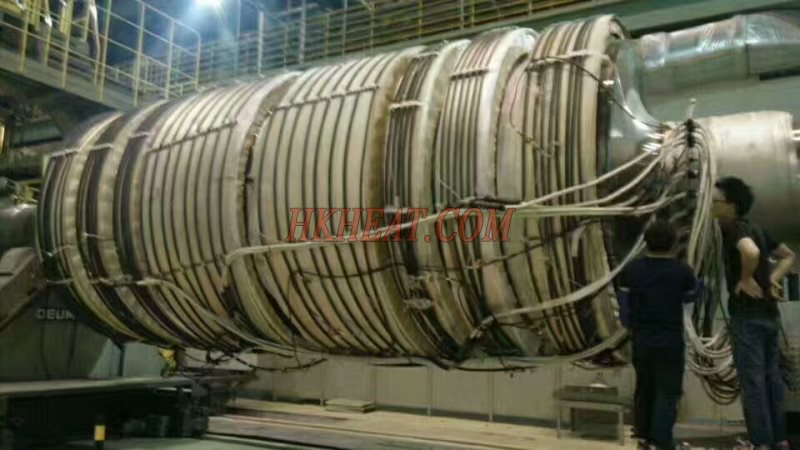

induction preheating (250 degree) and heat treatment (710 degree) for 30Ton control valve of 1000MW nuclear turbine by DSP air cooled induction heater
induction preheating (250 degree) and heat treatment (710 degree) for 30Ton control valve of 1000MW nuclear turbine by DSP air cooled induction heater

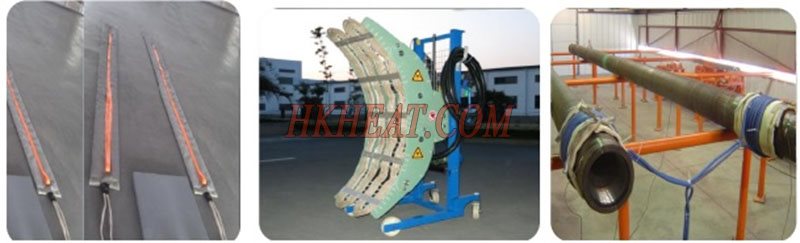

induction preheating by DSP full air cooled flexible induction coil
induction preheating by DSP full air cooled flexible induction coil

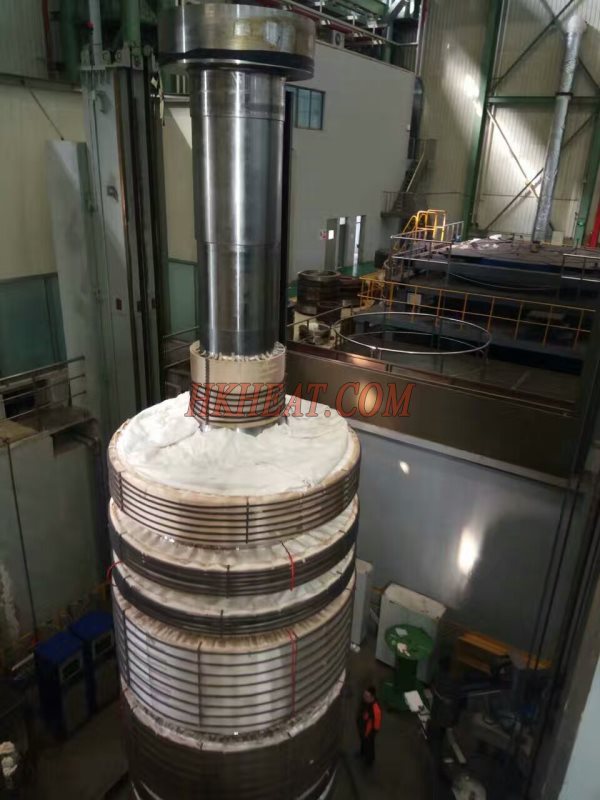

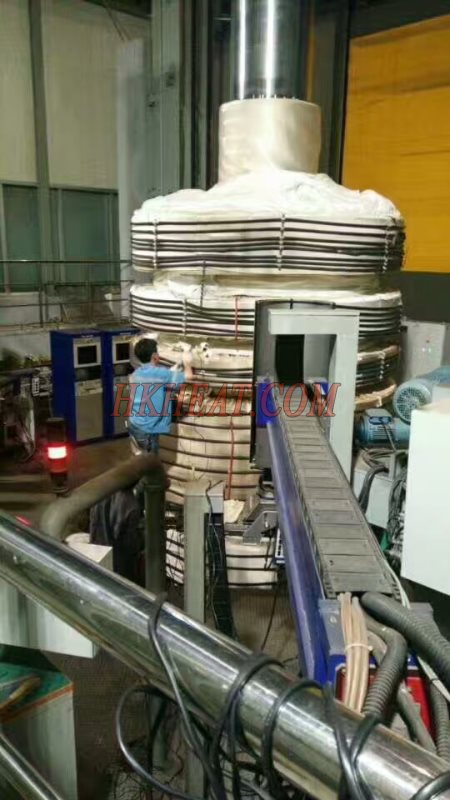

induction preheating hydroturbine shaft by full air cooled DSP induction heater (2)
induction preheating hydroturbine shaft by full air cooled DSP induction heater (2)

induction preheating hydroturbine shaft by full air cooled DSP induction heater
induction preheating hydroturbine shaft by full air cooled DSP induction heater

induction preheating hydroturbine shaft by full air cooled DSP induction heating machine
induction preheating hydroturbine shaft by full air cooled DSP induction heating machine

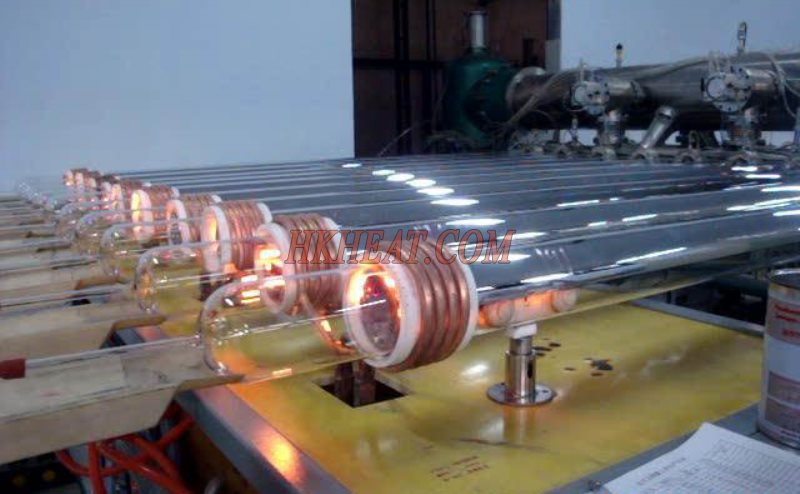

induction vacuum coating for solar collector tube by DSP air cooeld induction heater
induction vacuum coating for solar collector tube by DSP air cooeld induction heater

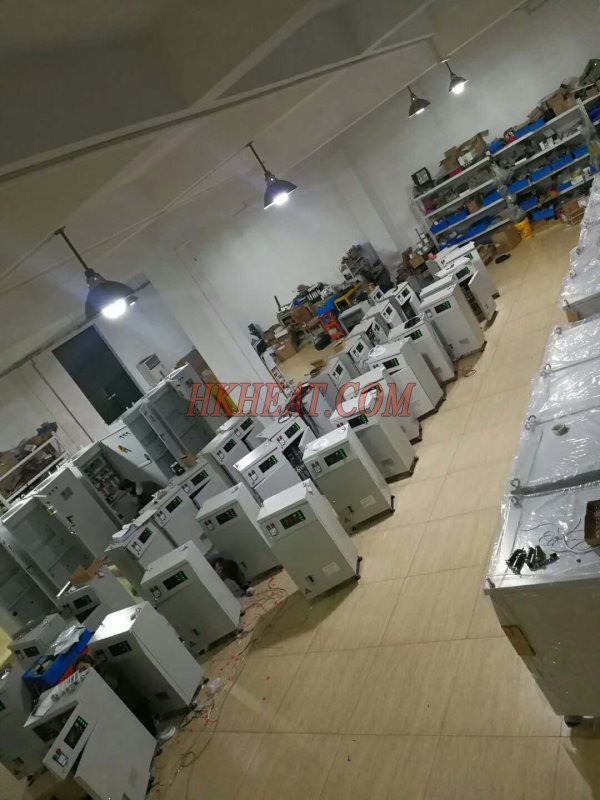

full air cooled DSP induction heating machines (1)
full air cooled DSP induction heating machines (1)

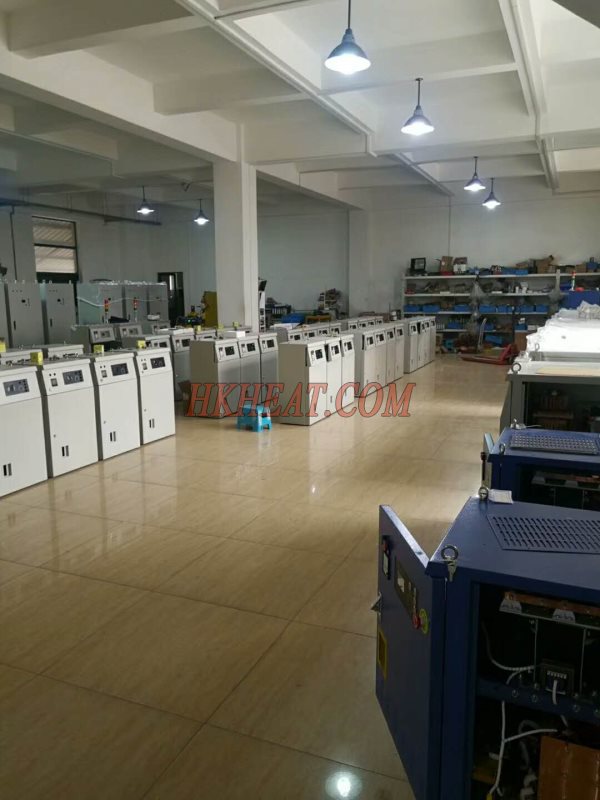

full air cooled DSP induction heating machines (2)
full air cooled DSP induction heating machines (2)
