HK-40KW-RF Air Cooled Induction Heater
2017/08/03 1905

Specification of Air Cooled Induction Heaters:

Item Description
Type HK-NKW-RF(N: 5~5000)
Absorbed Power 5KW~100KW / NKW(N>100)
Input Voltage 380VAC±10%, 50Hz|60Hz, 3 Phase
Environment Temperature -20℃~50℃
Environment Humidity ≤95%
Output Power Range 20%~100% stepless Regulation
Heat Transter Efficiency ≥95%
Power Factor ≥90%
Output Frequency Range 5KHz~40KHz
Communication Protocol RS485,modbus RTU
Display Programmable Digital Display
PID Power Control 0~5V
Induction Coil Air Cooled Type: Inductance:80-500μH, Cross Section Area:6mm2~50mm2, Length:20m~60m
Water Cooled Type: Customized
Lifetime >50000H

Specification of Induction Coil for Air Cooled Induction Heaters:

Type Absorbed Power Input Current Inductance
(μH)
Length
(m)
Coil Area
(mm2)
Frequency Input Voltage
HK-5KW-RF 5KW 8A 80~100 13~15 (Half-H) 6 5KHz ~ 40Khz 380VAC / 3 Phase
HK-8KW-RF 8KW 12A 200~220 35~40 (Half-H) 10
320~350 28~30 (H) 10
HK-15KW-RF 15KW 23A 130~150 28~30 (Half-H) 16
330~380 60~63 (H) 10
HK-20KW-RF 20KW 30A 80~100 25~28 (Half-H) 35
300~350 50~60 (H) 16
HK-30KW-RF 30KW 45A 60~80 20~30 (Half-H) 35
220~250 50~60 (H) 16
HK-40KW-RF 40KW 60A 150~200 40~53 (H) 25
HK-60KW-RF 60KW 90A 100~120 35~40 (H) 35/16*2
HK-80KW-RF 80KW 120A 80~110 40~43 (H) 50/35*2
HK-100KW-RF 100KW 150A 70~90 40~43 (H) 60/40*2

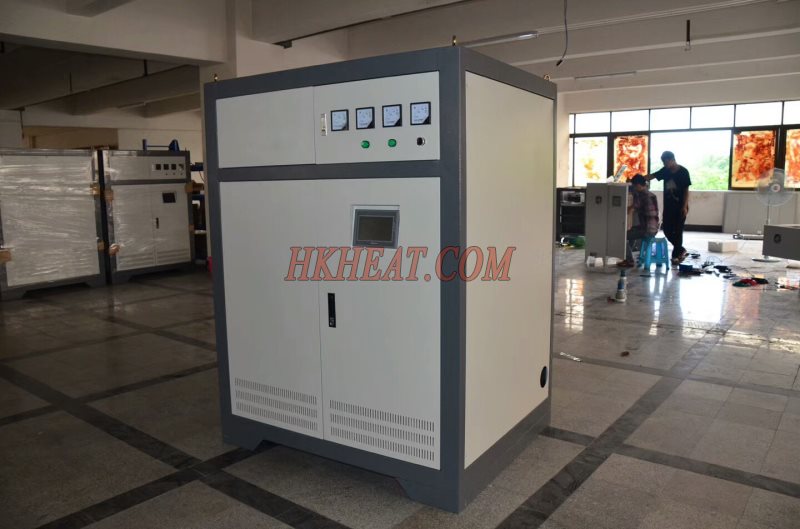

6X40KW full air cooled induction heater for providing heating to house to replace burning coal (1)
6X40KW full air cooled induction heater for providing heating to house to replace burning coal (1)

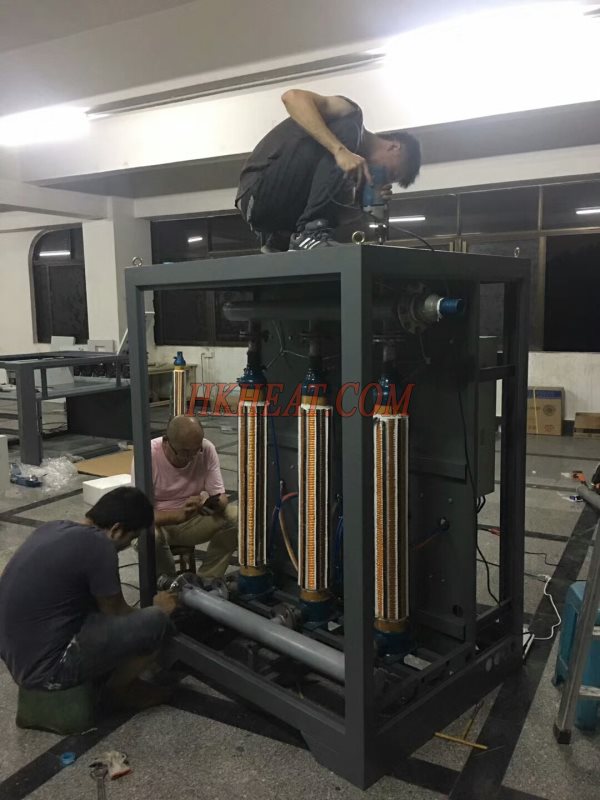

6X40KW full air cooled induction heater for providing heating to house to replace burning coal (2)
6X40KW full air cooled induction heater for providing heating to house to replace burning coal (2)

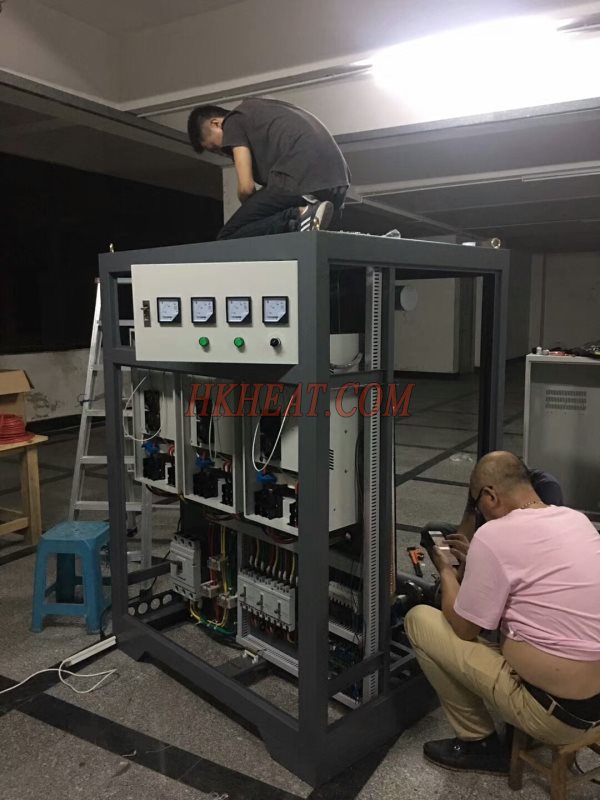

6X40KW full air cooled induction heater for providing heating to house to replace burning coal (3)
6X40KW full air cooled induction heater for providing heating to house to replace burning coal (3)

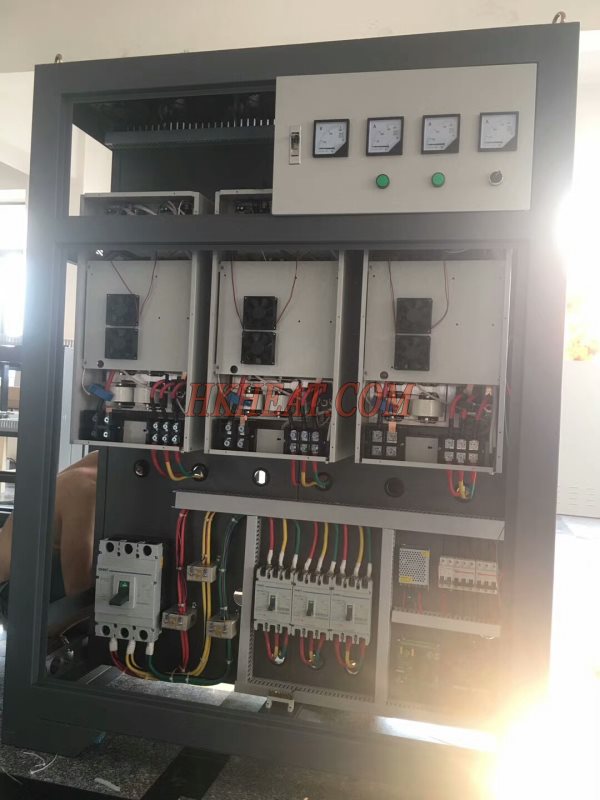

6X40KW full air cooled induction heater for providing heating to house to replace burning coal (4)
6X40KW full air cooled induction heater for providing heating to house to replace burning coal (4)

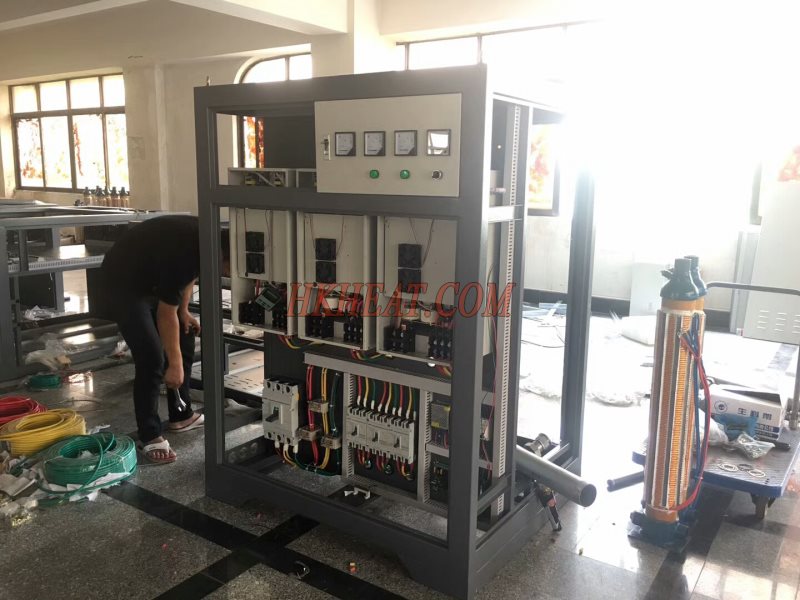

6X40KW full air cooled induction heater for providing heating to house to replace burning coal (5)
6X40KW full air cooled induction heater for providing heating to house to replace burning coal (5)

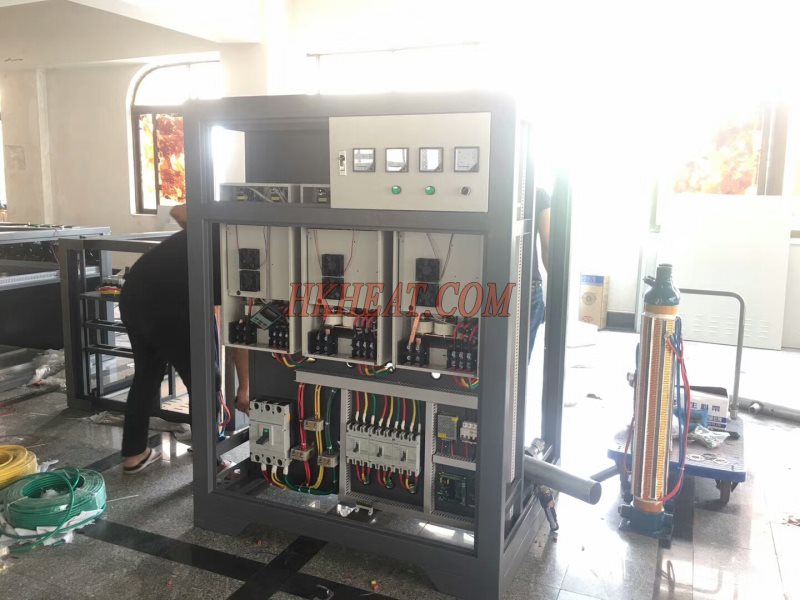

6X40KW full air cooled induction heater for providing heating to house to replace burning coal (6)
6X40KW full air cooled induction heater for providing heating to house to replace burning coal (6)

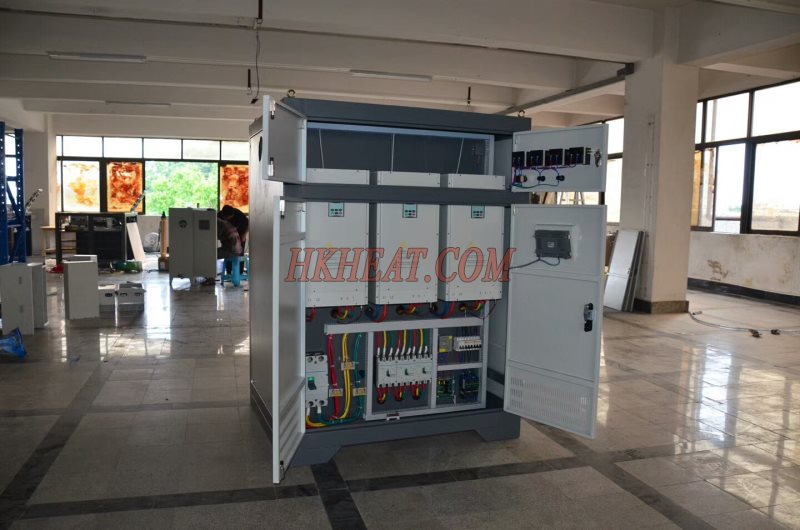

6X40KW full air cooled induction heater for providing heating to house to replace burning coal (7)
6X40KW full air cooled induction heater for providing heating to house to replace burning coal (7)

6X40KW full air cooled induction heater for providing heating to house to replace burning coal (8)
6X40KW full air cooled induction heater for providing heating to house to replace burning coal (8)

HK-40KW-RF full air cooled flexible induction coil for preheating steel pipeline (2)
HK-40KW-RF full air cooled flexible induction coil for preheating steel pipeline (2)

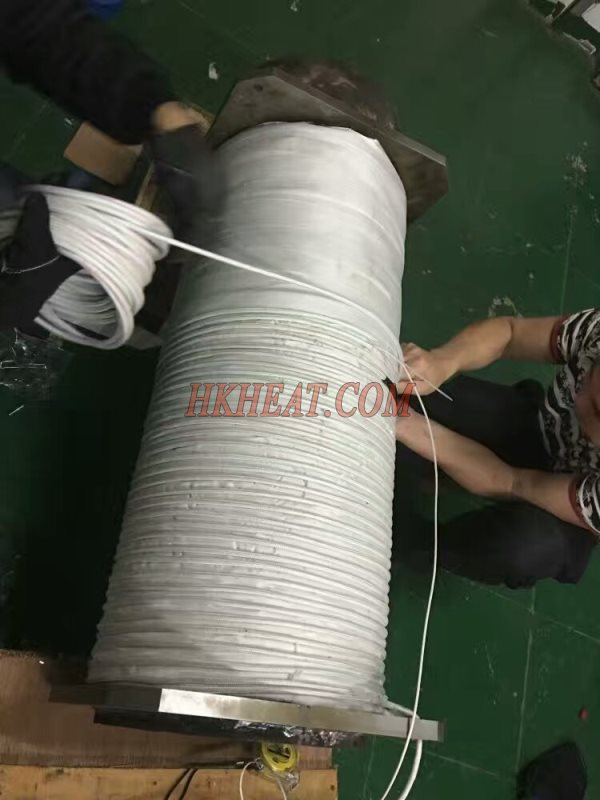

HK-40KW-RF full air cooled flexible induction coil for preheating steel pipeline (1)
HK-40KW-RF full air cooled flexible induction coil for preheating steel pipeline (1)

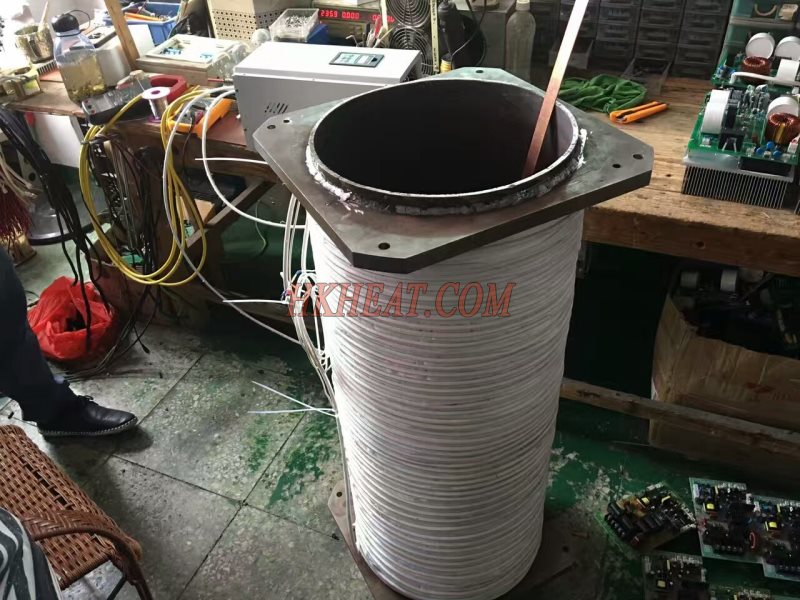

HK-40KW-RF full air cooled induction heater with long flexible induction coil_6
HK-40KW-RF full air cooled induction heater with long flexible induction coil_6

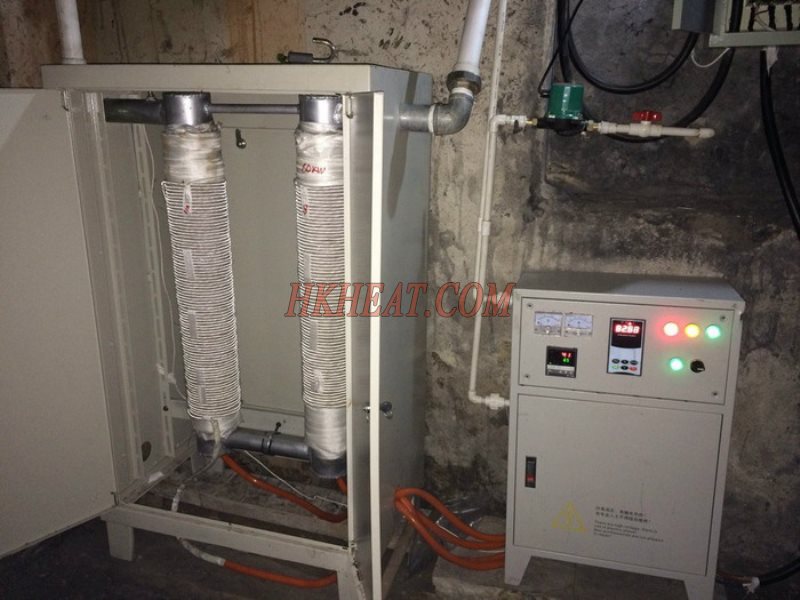

HK-40KW-RF replace burning coal by induction heating in bathhouse_1 (1)
HK-40KW-RF replace burning coal by induction heating in bathhouse_1 (1)

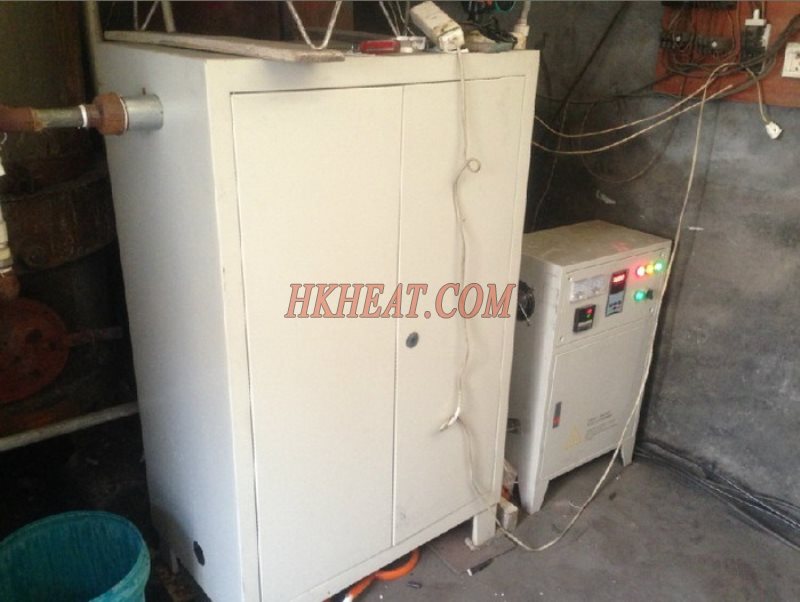

HK-40KW-RF replace burning coal by induction heating in bathhouse_1 (3)
HK-40KW-RF replace burning coal by induction heating in bathhouse_1 (3)

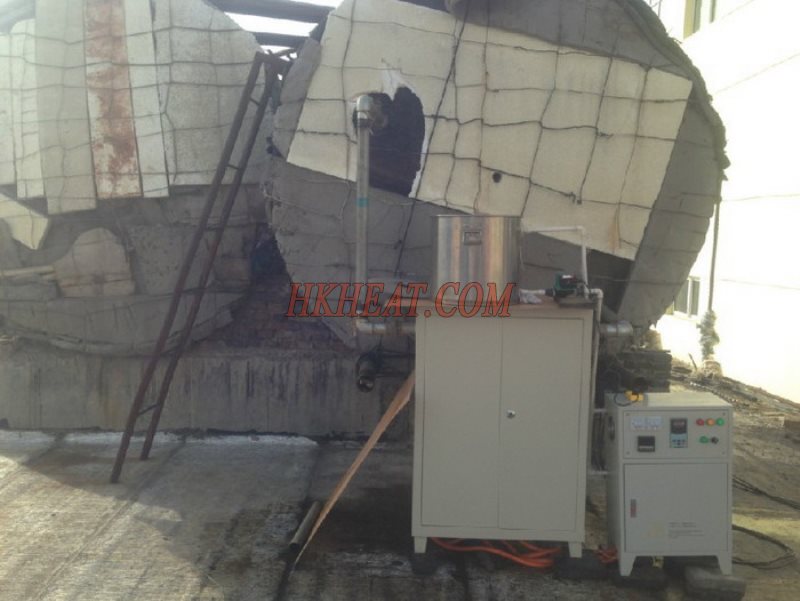

HK-40KW-RF replace burning coal by induction heating in bathhouse_1 (2)
HK-40KW-RF replace burning coal by induction heating in bathhouse_1 (2)
